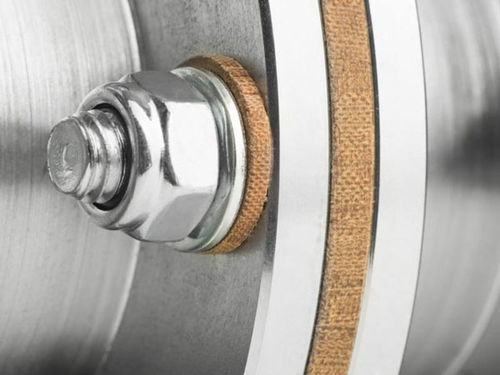

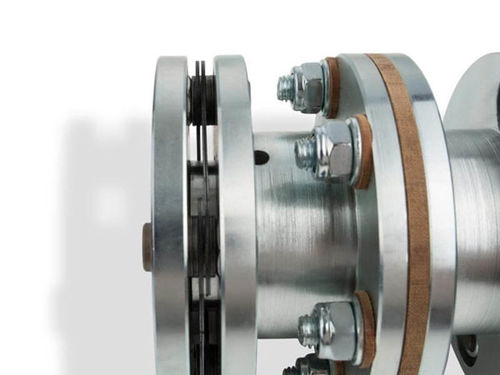

The isolated and corrosion-resistant HKI 97 metal multiple disc couplings compensate for increased parallel misalignment up to ±1 mm and increased axial misalignment up to ±2 mm, thus extending the service life of tacho generators.

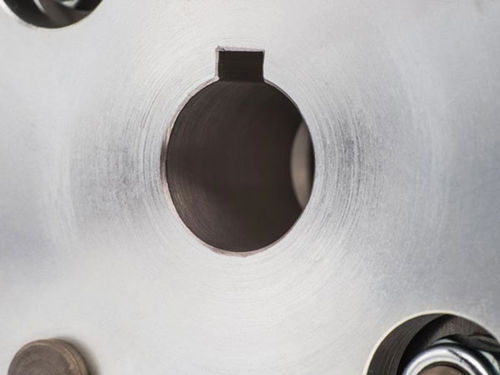

The double-jointed couplings are optionally available with mounting options for large bore diameters up to 40 mm and for shafts without a feather key (clamping) or tapered shaft.

Parameter Name	Parameter Value
Type	torsionally rigid
Product applications	generator with encoder
Other characteristics	zero-backlash double double-jointed high-torque
Torque (Nm)	100 - 100
Rotational speed (rpm)	12000 - 12000
