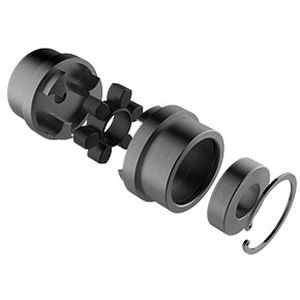

A medium power torsionally flexible coupling combining shock absorbing and misalignment capacity, used in the widest range of industries and applications.

Features & Benefits

Torsionally flexible - shock absorbing, extending machine life
Dimensionally similar to other spider couplings - interchangeable
Maintenance free - minimum number of wearing parts
Misalignment capabilities allowing flexibility in installation
Cost effective - offering a low cost product with high quality design
Optional fire retardant anti-static elements for use in flameproof environments
Taperbush bores available for ease of maintenance
Compact design - small, but with high torque capacity
Blind assembly
Applications

Bulk handling
Compressors
Generator Sets
Metal Manufacture
Pumps
General Industrial Applications
Construction Details

Cast iron half bodies - Grade G220
Standard element - Shore Hardness A90
FRAS element - Shore Hardness A78
Temperature Range -30+100°C
Standard Range Comprises

Shaft to shaft
Taper Bush or Parallel Bore

Parameter Name	Parameter Value
Type	torsionally flexible
Product applications	shaft industrial generator
Other characteristics	torque compact anti-static flameproof
Installation system	flange
Torque (Nm)	150 - 150 32 - 32
Rotational speed (rpm)	100 - 100
