Application areas:
Crane systems
Offshore / Ship
Steel industry
Mining / Material handling
Storage technology
Wind industry
Railbound hall roofs / gates
Product type:
RKK - WBS Brake disc coupling

Product description

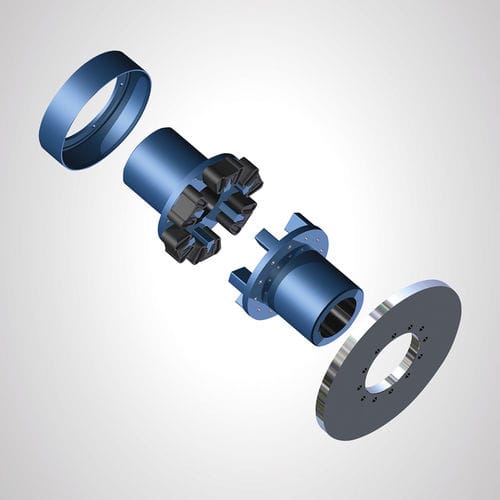

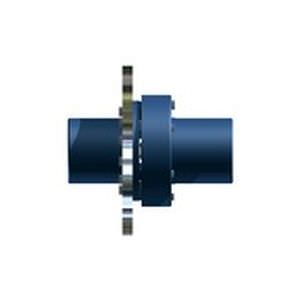

Elastic shaft coupling, Claw coupling with brake disc for disc brakes
Coupling is positively and breakdown-resistant
Made from solid material (C45), NO casting design
Standard painting RAL 5009 (2-Components painting)
MADE IN GERMANY, own production

RKK couplings / Connecting element with high flexibility.

Torsionally flexible
Axial compensatively
Radial compensatively
Angular compensatively
Exchange of worn coupling elements / rubber elements:
1. Releasing retaining cap and retract
2. Remove worn coupling elements and insert new ones
3. Put back and screw tight retaining cap

Brake disc made from solid material (C45)
Easily removable worn rubber elements / coupling elements WITHOUT disassemble the coupling or motor
Claws of the couplings are coaxial to the shaft (No draft angles, therefore lower axial forces)
Long service-life and reduced maintenance / follow-up costs
MADE IN GERMANY

Special construction
Special painting (Please specify RAL color)

Parameter Name	Parameter Value
Type	torsionally flexible
Product applications	for shafts
Installation system	flange
Torque (Nm)	0 - 0 300 - 300
Rotational speed (rpm)	1760 - 5700
