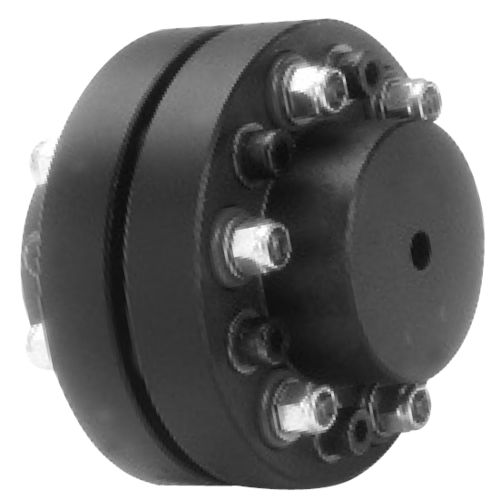

This robust, general-purpose pin and buffer coupling provides reliable transmission of torque, and misalignment capability.

Features & Benefits

Steel half bodies, strong yet compact
Heavy duty pin and buffer coupling - for heavy shock load conditions
Torsionally flexible - shock absorbing, extending machine life
Easy maintenance - minimum number of wearing parts; buffers can be changed without moving shafts
Misalignment capabilities - flexibility in installation
Polyurethane buffers - reliable, flexible and temperature-resistant
Modular construction - available in coupling, brakedrum and shear pin designs
Taper bore version available
Standard Range Comprises

Shaft to shaft
Shear Pin
Brake Drum/Disc
Applications

Conveyors
Escalators
Mixers
Pumps
General Industrial Applications

Parameter Name	Parameter Value
Type	torsionally flexible pin and bush disc drum
Product applications	transmission shafts industrial
Other characteristics	torque
Installation system	flange
Torque (Nm)	500 - 500 194 - 194
Rotational speed (rpm)	1700 - 6800
