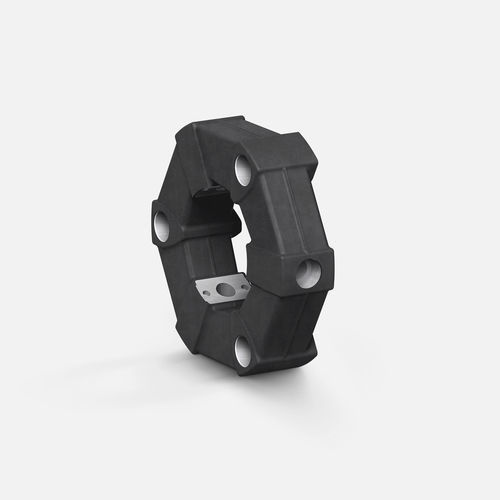

Highly flexible torque coupling
The MEGIFLEX B is a multi-application highly flexible coupling. With its modular design and pressure loaded element, the MEGIFLEX B completes the VULKAN product portfolio in the torque range smaller VULKARDAN E / F and VULASTIK L couplings. The rubber element can fulfill every conceivable requirement thanks to its torsionally soft with vibration damping and all-round flexible performance. Typical applications include primary drives, in particular with small pods or auxiliary drives like PTO/PTI with connected units.

MEGIFLEX B versions
The MEGIFLEX B it is available in 16 sizes each with 3 rubber rigidity levels as radial removable or axial plugged in version. In addition to the highly compact element, the MEGIFLEX B can be adapted into a double cardanic version as a high displacement and torsionally flexible cardan shaft for every conceivable installation. The MEGIFLEX B design ensures integral slippage protection.

MEGIFLEX B benefits

Modular design available in radial and axial removable version and as torsionally flexible cardan shaft to ensure the highest solution flexibility
Effective vibration absorption and high displacement capacity ensure protection for connected units and consequently high availability of the drive system
Easy installation thanks to axial connected or axial bolted on elements
Noise absorbing for maximum comfort

Benefits
Through its modular design; it can endure high radial, axial and angular displacements and as a torsionally flexible Cardan shaft, the MEGIFLEX B can be used in various applications for the highest solution flexibility.

Parameter Name	Parameter Value
Type	torsionally flexible
Product applications	for diesel engines
Other characteristics	compact with high torsional flexibility
Installation system	flange
Torque (Nm)	500 - 500 10 - 10
Rotational speed (rpm)	2500 - 10000
