Design:

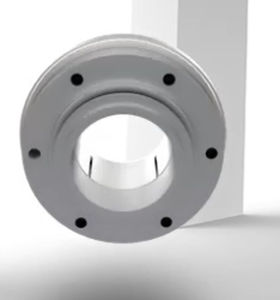

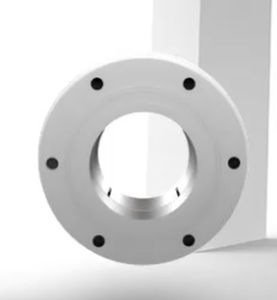

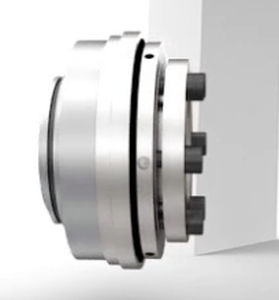

model SK1 with clamping hub.

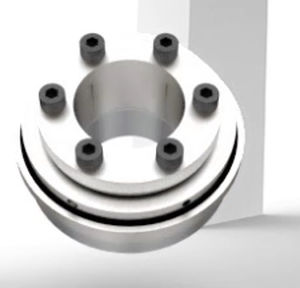

model SK1 with conical clamp.
absolutely backlash free through the frictional clamping connection.

Temperature range: -30° C to +120° C (-22° F to +248° F)
Service life: Maintenace free when operated within the technical specifications.
Tolerance: Tolerance between hub and shaft 0.01 - 0.05 mm.
Material: High strength, hardened steel
Properties of Torque Limiter model SK1:

absolutely backlash-free and torsionally rigid
compact, simple design
disengagement detection achieved through high indexing ring movement
low residual friction following disengagement
low moment of interia
self-adjusting
disengagement within 1 - 3 msecs.

Parameter Name	Parameter Value
Operation	with sprocket wheel
Torque (Nm)	800 - 800 0.1 - 0.1
Diameter (mm)	4 - 100
