Delivers reliable torque measurements for rigs that use chain-driven rotary tables
Available in box-mount or panel-mount configurations, the RIGCHINA Hydraulic Rotary Torque System provides accurate indications of changes in torque for rigs that use chain-driven rotary tables.
Each system includes an Idler assembly and a Gauge.

Technical Specification:
1. Output hydraulic pressure signal range: 0~6MPa
2. Tension pulley external diameter: F305mm
3. High-pressure cylinder diameter: F65mm
4. Minimum height of sensor: 355.5mm
5. Operating temperature: -40. ~+85 ºC
6. Non-linear error: 0.5%

Features:

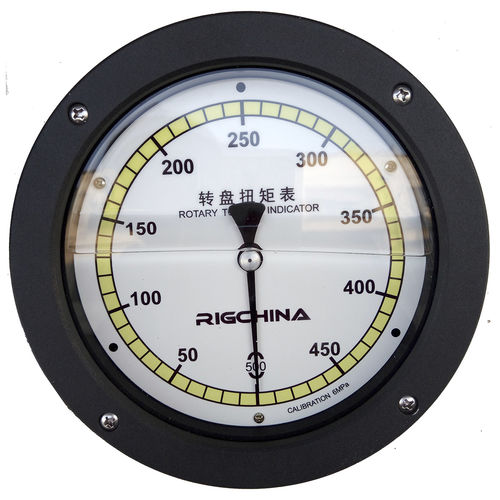

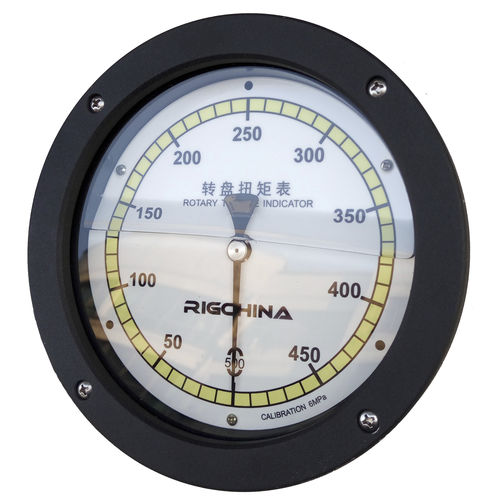

6-inch fluid-filled Gauge
Available in 500 and 1,000 points
Gauge has operator-adjustable dial to zero out drill string
in order to monitor torque at the bit
Standard 25-foot hose, with other hose lengths available
Rugged Steel Sprocket available (replaces rubber wheel located in Idler assembly)

To order specify:
Bracket-mount or panel-mount gauge
Gauge capacity
Chain size
Chain width (single or double)
Hose length (25 feet is standard)

Parameter Name	Parameter Value
Measured value	torque
Display	dial
