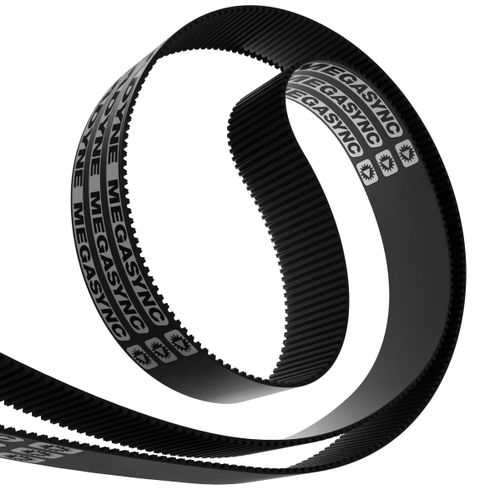

MEGASYNC™ RPP is the classic type of MEGASYNC™ transmission belt, made in chloroprene rubber and suited for a very wide range of applications.

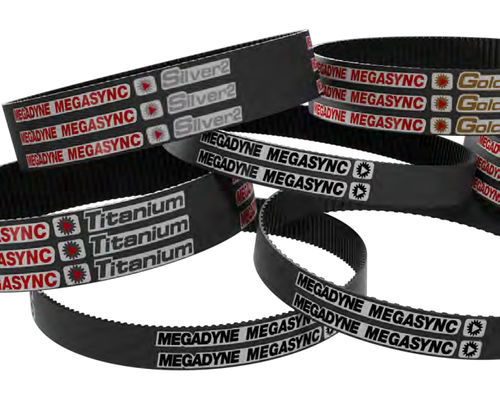

Compared to MEGASYNC™ Imperial Pitch, they can transmit more power per the same width, although they are less performing than the top of the line MEGASYNC™ Titanium, Gold and Silver2 belts.

Features

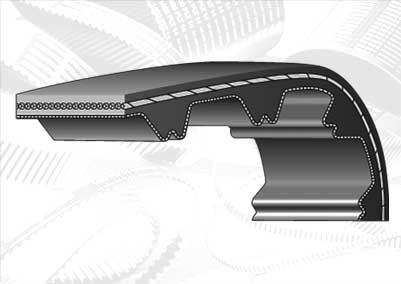

The parabolic profile of MEGASYNC™ RPP has a progressive angle starting from the root of the tooth, up to the tip.
This allows to have a taller tooth with the same pitch length.
The groove on top permits a smoother engagement, a better meshing of the tooth with the pulley and less wear of the belts.

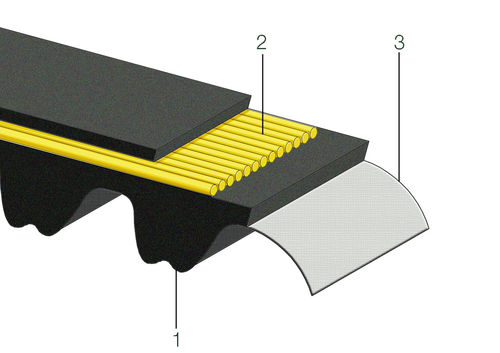

MAIN COMPONENTS
01 / BODY
The body is made from an innovative rubber compound, reinforced with a special fiber; hardness 74 ShA.

02 / CORD
Continuous helically wound fiberglass cords form the tensile member of the belt.

03 / COVER
A wear-resistant nylon fabric with self-lubricant capability covers the teeth surface.


Timing belts Rubber endless MEGASYNC™ RPP and RPP DD
MECHANICAL AND CHEMICAL PROPERTIES
less noise
less pre-tension
higher transmittable torques
improved resistance to tooth jump and to tooth shear
MEGASYNC™ RPP belt working temperature - 25°C/+80°C

Parameter Name	Parameter Value
Type	timing endless
Material	chloroprene
Product applications	for machine tools handling for packaging machines for aluminum for automation for conveyor belts
Sector	for the textile industry, for the automotive industry, for the food industry, for the packaging industry, for the paper industry
Hardness	74 shore A
Other characteristics	high-resistance low-noise oil-resistant heat-resistant abrasion-resistant chemical-resistant
Thickness	Min.: 2.4 mm (0.09 in)Max.: 13.7 mm (0.54 in)
Pitch	3 mm, 5 mm, 8 mm, 14 mm (0.12 in)
Temperature	Min.: -25 °C (-13 °F)Max.: 80 °C (176 °F)
