About

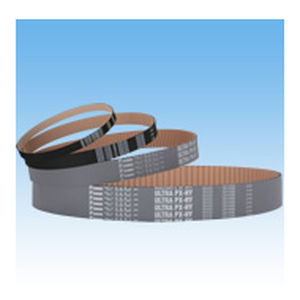

HY Type Ultra PX Belts use a hybrid core of carbon and glass for dramatically increased strength and durability.
Tsubaki pursued maximum performance to bring even higher load transmission and longer life to its belts.
＊HY Type belts are made-to-order. (lot pricing )
Features
＊Ultra high strength ：
Enables high transmission performance by using a hybrid core with specially treated high rigidity carbon and glass fiber.
It has 1.3 to 2.0 times the transmission performance of Ultra PX Belt HC Type. Allows for more compact and lightweight equipment.
＊Ultra high rigidity ：
Hybrid core provides less load elongation. High speed and high load transmission are possible.
It also greatly shortens damping time and maximum amplitude for faster equipment speeds.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Type |
timing
|
| Material |
carbon
|
| Other characteristics |
oil-resistant
|
| Width (mm) |
6 - 120
|
| Pitch |
3 mm, 5 mm, 8 mm, 14 mm (0.12 in)
|
| Temperature |
Min.: -15 °C (5 °F)Max.: 60 °C (140 °F)
|
