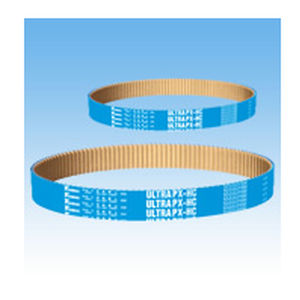

HC Type Ultra PX Belts enable high load transmission, long life, and compactness thanks to its high strength material and PX belt tooth contour.
Next-generation timing belt that pursues the performance demanded of belts.

Features
・High precision ： Improved transmission precision thanks to a 50% reduction in operational elongation leads to higher equipment precision. There is no need for belt retensioning.
・Highly durable ： Transmission capacity is double that of the previous PX Belt. Space saving designs such as narrow belt widths and a smaller number of teeth are also available.
・Clean ： Uses wear resistant tooth fabric. Clean operation is possible since less wear dust is generated.
・Color shows wear at a glance (blue) ： Using blue rubber for the teeth shows wear at a glance.

Parameter Name	Parameter Value
Type	timing
Material	rubber
Other characteristics	for heavy loads narrow high-performance
Width (mm)	6 - 120
Pitch	3 mm, 5 mm, 8 mm, 14 mm (0.12 in)
Temperature	Min.: -15 °C (5 °F)Max.: 60 °C (140 °F)
