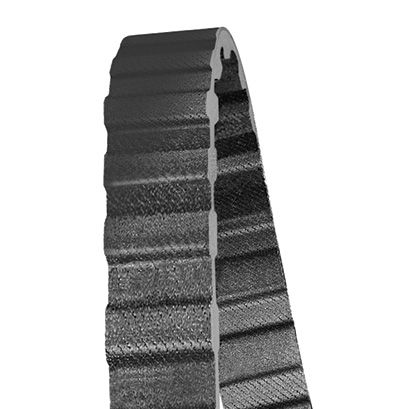

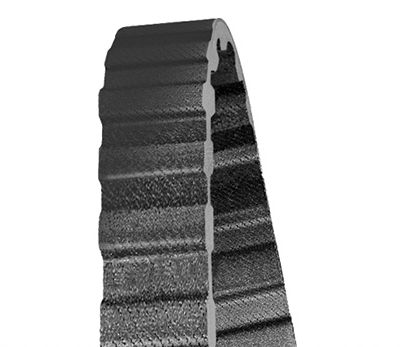

The Dual Synchro-Cog timing belt has a trapezoidal tooth profile that provides maintenance-free synchronization with equal load capacity from both sides of the belt. It allows greater flexibility and efficiency in drive design. The freedom to use a single belt for a series of pulleys results in a more efficient use of available space with decreased overall drive weight and cost. The non-slip positive drive provides smooth, clean and quiet performance with optimum efficiency. The belt features an advanced polymer construction with molded teeth that are sheer resistant and designed to assure smooth, positive meshing with the sprocket. A tough nylon tooth facing is wear resistant. High quality fiberglass cords are specially treated to provide strength, flex life and resistance to stretching. The belt resists oil, heat, ozone, grease, and moisture for maximum belt life.


Features/Advantages

Advanced polymer construction

Molded teeth that are sheer resistant and designed to assure smooth, positive meshing with the sprocket

Tough nylon tooth facing is wear resistant

Fiberglass cord is specially treated to provide strength, flex life and resistance to stretching

Low maintenance

Clean

Quiet

Efficient

Parameter Name	Parameter Value
Type	trapezoidal timing
Material	nylon, polymer
Product applications	profile
Other characteristics	maintenance-free smooth
Pitch	0.2 in, 0.38 in, 0.5 in
