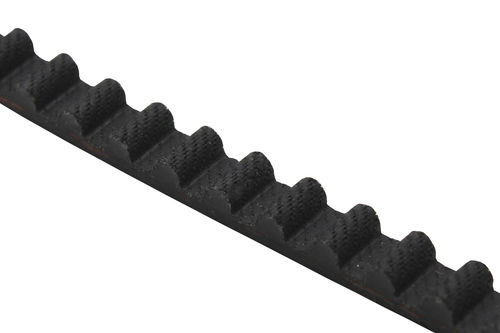

Timing Belts and Pulleys
Reliance timing belts and timing pulleys are available in 2.5 mm and 5 mm pitch. High tensile stainless steel reinforced polyurethane belts with widths of 6 mm, 10 mm and 16 mm, coupled with aluminium alloy machine cut pulleys, provide cost effective motion over extended centres.

Features and options for our timing pulleys
Zero-backlash pulleys
2.5 mm pitch available with bores sizes 3, 4, 6 and 8 mm as standard
5 mm pitch available with bores sizes 4, 6 and 8 mm as standard
Alternative bores available
0, 1 or 2 flanges available
Tapped holes available
Keyed bores available
Features and options for our timing belts
Temperature range for the belts: -30ºC to +80ºC
Maximum allowable peripheral load 2.5mm pitch: 6mm wide belt = 65 N
Maximum allowable peripheral load 5mm pitch: 10mm wide belt = 330 N, 16 mm wide belt = 570 N
Maximum peripheral speed: 80 m/s
Timing belt width tolerance: ±0. 3mm
Timing belt lengths: 2.5mm pitch from 55mm to 950 mm, 5.0 mm pitch from 100 mm to 1,380 mm
Number of teeth on timing pulleys: 2.5mm pitch from 12 to 60, 5 mm pitch from 10 to 60
Anti-static belts available

Parameter Name	Parameter Value
Type	timing
Material	polyurethane
Product applications	pulley machine
Other characteristics	anti-static wide
Pitch	Max.: 1,380 mm (54.33 in)Min.: 1.3 mm (0.05 in)
Temperature	Max.: 80 °C (176 °F)Min.: -30 °C (-22 °F)
