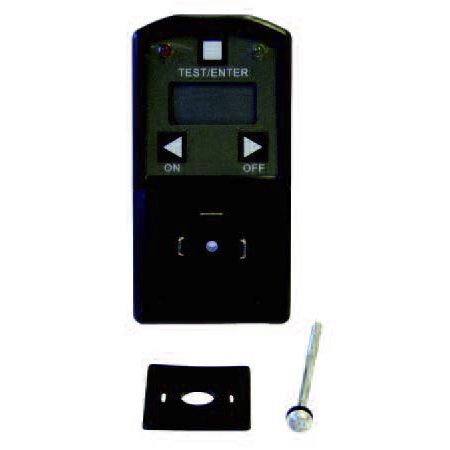

The digital timer is a plug-on controller specially design for Solenoid
valves. The unit offers an easy time cycle programming. The switching
time can be set with the ON touch between 0 and 99 seconds. The
OFF touch allows to adjust the delay time between two switching
cycles from 0 to 99 minutes. The unit is ready to control the valve as
soon as the power is switched on. The ON/OFF sequence will be repeated
so long as the unit is powered. Two LEDS indicate the output
status. A TEST button is provided to check the cycle settings and to
restart the control sequence from the output status ON.
Compared to analog solution it offers hugher precision ’high. Through
the display you can see the set times.
