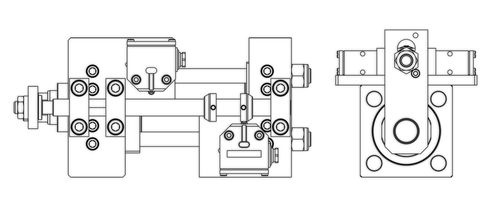

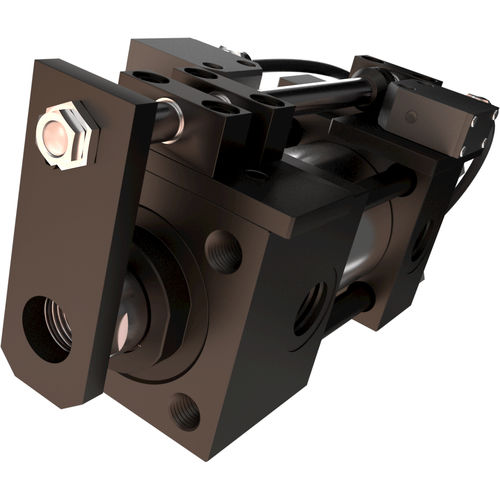

The V215CD includes tie-rod hydraulic cylinders following the international UNI ISO 6020/2 fixing size norms. The standard version includes piston bores from 50 to 200 mm, and strokes from 1 to 1500 mm. V215CD cylinders offer long strokes and linear movements with one rod-end (no passing-through rod). They are composed of two heads, one central tube, and 4 closing tie-rods.

V215CD hydraulic cylinders can be employed to move components—such as carts, pins, and plugs—that might produce undercuts in aluminum die-casting molds. In-line pinned fixings are available on either front and rear heads. Also, front and rear adjusting flanges are available as well.
The front cartridge sealing system includes one scraper, 3 bush guides, and 2 NBRH O-Rings for temperatures up to 150°C. These components allow the cylinder sealing system to last over long periods of time.
These hydraulic cylinders are compatible with water-glycol mixtures.

The cylinder piston can include a magnet with a powerful attraction force. The piston stroke can be controlled by means of adjustable electronic sensors, able to read the surrounding magnetic field. Moreover, mechanical sensors are also available for these cylinders, as well as inductive and encoder ones. Signals can be transferred to the plastic injection machine. The maximum working temperature for magnetic and inductive sensors is 80° C., whereas mechanical ones can withstand temperatures up to 180°C.

Parameter Name	Parameter Value
Type	hydraulic
Technology	tie-rod
Material	stainless steel, steel
Norms	ISO 6020
Applications	for die-casting applications
Other characteristics	compact
Stroke (mm)	20 - 250
Force (N)	1570 - 50240
Pressure	Max.: 215 bar (3,118.3 psi)Min.: 140 bar (2,030.5 psi)
Bore	Max.: 200 mm (7.87 in)Min.: 50 mm (1.97 in)
Speed (mm/s)	100 - 800
