Compact power controller with modular multi-zone SCR

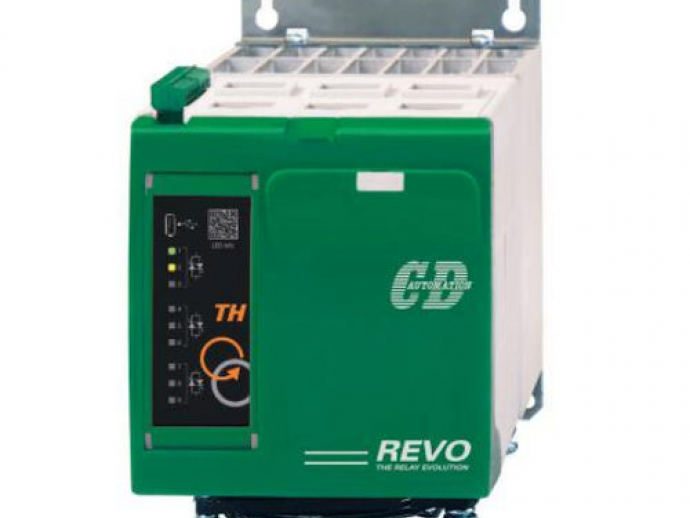

The power controllers REVO TH are one of the latest born into the REVO family.
Despite the formidable compactness, inside there are three independent SCR power units , which thanks to thyristor abundantly oversized in their junctions, they can manage currents up to 90A with a maximum voltage of 600V.

Using Modbus and/or the more common fieldbus, multiple units can be connected to each other and therefore the ideal application area is the control of heating elements on multiple zones such as the simultaneous control of multiple IR lamps.

Other application sectors can be for example:

Multizone ovens
Machines for plastics (extruders and extrusion lines, extrusion heads and hot runner mold control units)
Packaging machines
Ovens with long, medium and short wave IR lamp
REVO TH integrates THREE independent power control zones in a single product, and includes:

Three independent single-phase thyristor power controllers
Fixed high-speed fuses
Current transformers
Control mode V – I – V2 – I2 – P
Input signal in digital mode, no connection jumper inside
Firing modes: single cycle, half cycle, burst firing, phase angle, delayed trigger, different types of adjustable ramps
Two analog inputs
Two digital inputs
Load and SCR diagnostics
Current limit function
Alarm outputs
3 independent power controllers in one compact product
Max voltage 480V up to 90A
Thyristor unit with high I2T
Synchronization circuit
Integrated extra fast fuses
Digital input and relay output
HB alarm
High precision current transducer
Monitoring of RMS voltage, current and power
Communication: RS485 Modbus
Reduction of cabling and space used

Parameter Name	Parameter Value
Technology	thyristors, SCR
Type	burst digital phase single-phase analog
Other characteristics	modular
