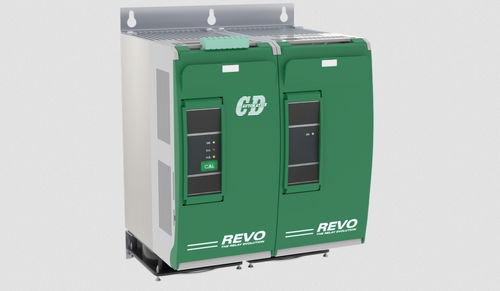

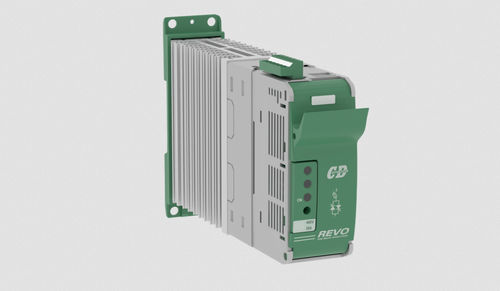

Designed to replace contactors, REVO-S solid state relays are suitable for currents up to 800A and voltages up to 690Vac. Available in single and 3 phase formats.

-Helps reduce machine downtime
-Maximises cabinet space with space saving design
-Clean electricity as no interference is produced
-Ideal for normal resistance, medium & long wave IR load types

In its simplest form the REVO-S solid state relay is a compact and cost effective solution to replace mechanical contactors with reduced maintenance and operating costs, as there are no moving mechanical parts to fail.

Being electrically quieter, as the device turns ON/OFF at zero volts, it doesn’t create RFI interference so line distortion is eliminated. Add finer control and extended heater element life due to shorter cycle times and you benefit with increased process stability and decreased heater thermal shock

Benefits

-Helps eliminate machine downtime by up to 95% and can reduce overall purchase cost by 90% over the product lifetime compared to traditional mechanical contactors
-Space saving package extends the depth of the unit but reduces its mounting footprint resulting in increased cabinet space
-Cleaner electricity as no interference is produced when switching at zero volts
-Easy access to fuses saves time if they require replacing

Features

-Designed for normal resistive, medium & long wave infrared load types
-Available in single(phase to phase or phase to neutral)or 3 phase versions (2 phase also available for 3PH,3 wire configurations with no neutral connection)
-Zero Cross or Burst Firing modes
-DC Logic (SSR drive), 4-20mA or 0-10V input control signals

Parameter Name	Parameter Value
Technology	thyristors
Type	three-phase single-phase
Configuration	DIN rail
