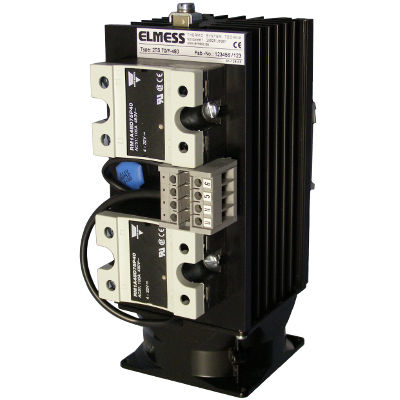

Thyristor controllers are contact less and thus wear-free switches.

Thyristor controllers are suitable for switching without ohmic loads. They work with a zero-crossing of the voltage with an output between 0... 100 %.

The errors coming from this switching principle are negligible.

Control is carried out via logic signal (impulse groups) of 0 V and 4...32 V DC or with 24...265 V AC.

Available types are divided into rated currents of 30 A, 50 A, 70 A and 100 A with rated voltages of 480 V AC, 500 V AC and 690 V AC.

The devices for switch cabinet installation are supposed to be assembled on a 35mm standard rail.

For a rotary current economic connection two devices are required of 30 A or 50 A units.

Optionally, a monitoring function can be integrated.

Thyristor controllers with active cooling (fan) require auxiliary energy and are equipped with a temperature switch.

Thyristor controllers and ELMESS temperature monitoring and controlling devices are perfectly suited for controlling heaters, e.g. in an ELMESS cascade loop control.

Parameter Name	Parameter Value
Technology	thyristors
Other characteristics	for heating systems
