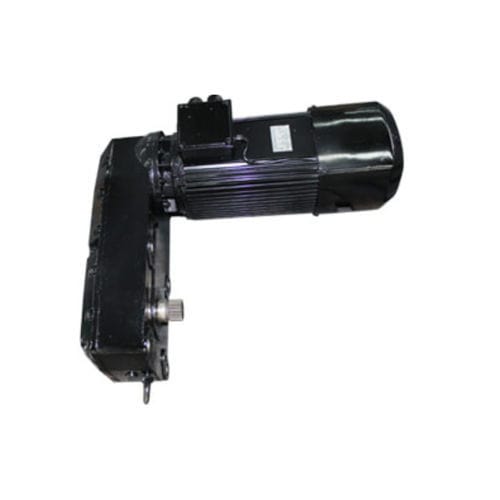

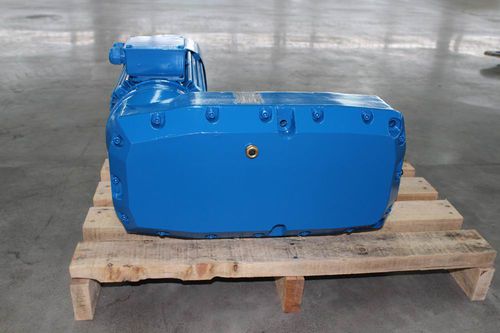

FLK QZ series wire rope hoist lifting drive system is 3 stage parallel shaft helical geared motor with compact design, high efficiency, long shaft distance can install drum with larger diameter. FLK QZ series hoist units offers specifically geared motors with brakes for direct drive of rope drums in five sizes. The hoist unit design is based on FEM calculations for standard lifting gear allowing safe and reliable lifting of loads from 3.2 to 40 tons in 4/1 falls.

CHARACTERISTICS

Compact and heavy duty drive units
Large axis base for assembly in U-design
Direct mounting of rope drums
Available in lifting speeds of 4 / 5 / 6.3 and 8 m/min (4/1 falls)
Low weight of drive unit
Easy to mount

Product Form

Transmission Stage: 3 stage.
Mounting: Suspension mounted.
Parallel Output: Involute spline solid shaft.

Parameter Name	Parameter Value
Type	three-stage
