VEICHI provides OEM/ODM Service for TOP Customers.

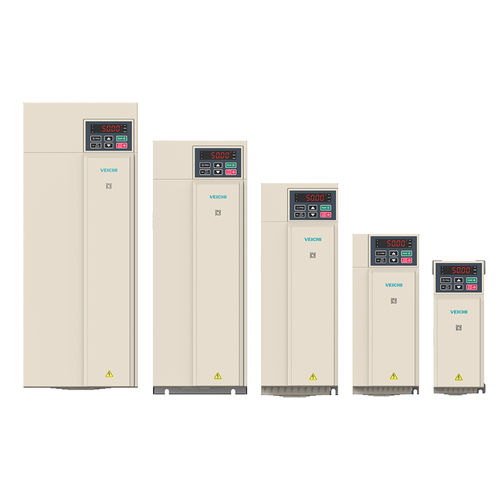

The AC310 series inverter is a product continuously developed on the new high-performance vector technology platform of VEICHI. It adopts field-oriented vector control technology to be compatible with synchronous and asynchronous motor control.

Product Advantages：
1. High-performance vector universal platform and brand new motor control algorithm.
2. Synchronous and asynchronous drives are integrated, open-loop and closed-loop are comprehensive.
3. Accurate torque excitation decoupling and excellent dynamic response performance.
4. The entire series of book-based design saves installation space to the greatest extent.
5. Comprehensive thermal simulation design to ensure the rationality of hardware arrangement.
6. AC310 series innovative grounding method can quickly solve the problem of electromagnetic interference.
7. Software and hardware modular design requirements and powerful expansion capabilities.

Applications：
Fans and pumps, wire drawing machines, injection molding machines, ball mills, machine tools, air compressors, belt conveyors, industrial washing machines, lifting industries, and other industries and equipment.

Voltage, frequency: single-phase 220V 50/60Hz three-phase 220V 50/60Hz
three-phase380V~480V 50/60Hz
Output voltage: 0～input voltage, deviation<5%
Power range: 0.75kW～220kW(220V) 0.75kW～710kW（380V）

Brochure and Manual:
https://drive.google.com/drive/folders/1Jh1ixlIaKg1woEIKEXd9SudYy6D0jOwy?usp=sharing

More details: https://www.veichi.com/product/ac310-inverter.html

Parameter Name	Parameter Value
Type	three-phase single-phase vector control Modbus
Mounting	direct mounting housed wall-mounted
Applications	for hoists for automation for machines HVAC for synchronous motor for conveyors for machine tools for compressors for doors for motor spindle for asynchronous motors pump for refrigeration application washer liquid-cooled fan
Protection class	IP20
Other characteristics	programmable compact modular Modbus integrated braking resistor vector-controlled torque control 380-480 V air-cooled for motors low-voltage PROFIBUS with PID controller CANopen with integrated PLC
Power (W)	750 - 750
Intensity (A)	3 - 1260
Output frequency	Max.: 16 HzMin.: 1 Hz
