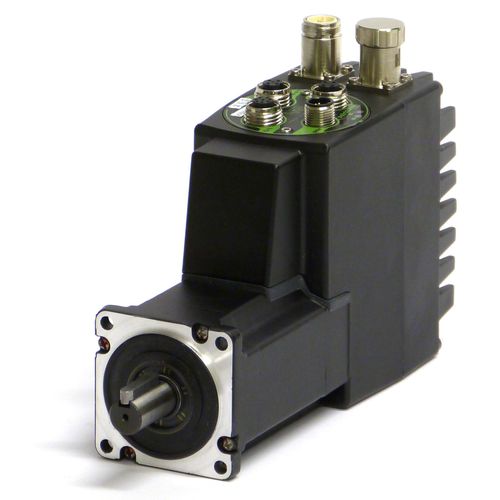

MAC400 - The complete solution for medium power ratings.
With built-in mains power supply.
Choose between model with or without brake.
Also in IP66 version.
Choose Expansion module from the extensive selection for any application.

Motor size is:
• MAC400-D2 400W
• MAC400-D5 (with built-in brake) 400W

New features:
• Absolute multiturn encoder without battery
• Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII
• 2 RS422 channels for encoder in/output and SSI encoder etc.
• 6IO for capture of position, interrupt, counters, enable, timer and PLC functions

Expansion module you can choose between:
• Basic Modules
• Programmable Modules
• Field Bus Modules
• High Speed Multi-Axis Modules
• Wireless Modules

Parameter Name	Parameter Value
AC/DC	three-phase single-phase DC
Type	synchronous
Voltage (V)	230 - 110
Protection class	IP66 IP55
Configuration	with brake
Applications	industrial
Other characteristics	EtherCAT RS-232 RS-485 programmable
Power (W)	400 - 400
Torque (Nm)	1.3 - 1.3 3.8 - 3.8
Rotational speed (rpm)	3000 - 3000
