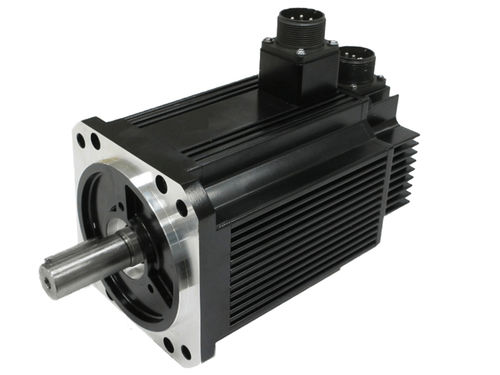

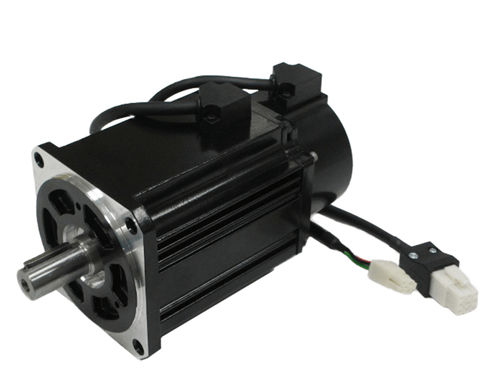

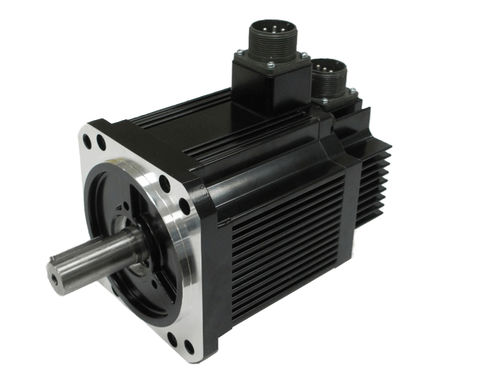

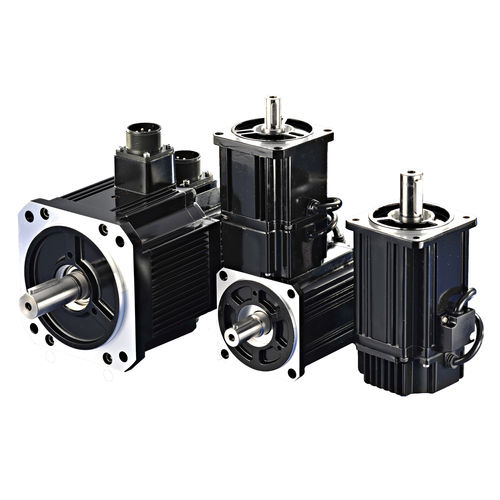

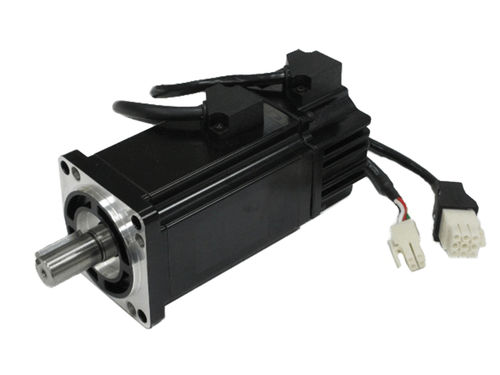

The Alpha motor series deliver noise and vibration free performance at nominal torque in most demanding applications. The Alpha’s motor inertia and electrical performance are designed to suit a wide range of applications and incremental digital encoders are used to ensure compatibility with most industrial servo drives. The Alpha Series is a cost effective solution available in a range of industry standard sizes.

AT A GLANCE

- Permanent magnet AC servo motors from 200W – 2,000W
- Vibration free performance at nominal torque
- Highly Compatible incremental digital encoder
- Fully enclosed frame with IP67 rating
- Very low cogging torques
- Integrated brake option

Parameter Name	Parameter Value
AC/DC	three-phase
Type	asynchronous
Protection class	IP67
Configuration	permanent magnet
Number of poles	8-pole
Applications	industrial
Other characteristics	low-noise low-vibration
Power (W)	200 - 200
Torque (Nm)	0.64 - 9.55
Rotational speed (rpm)	1000 - 7000
