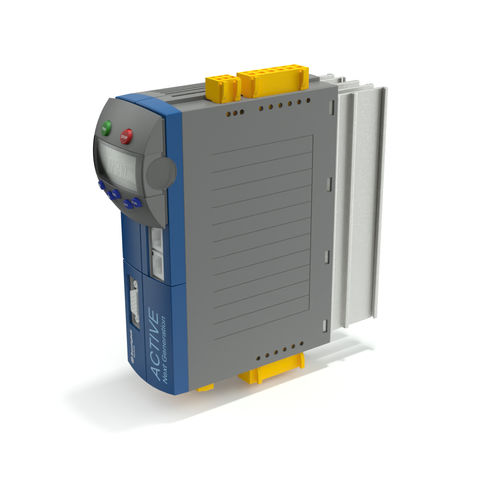

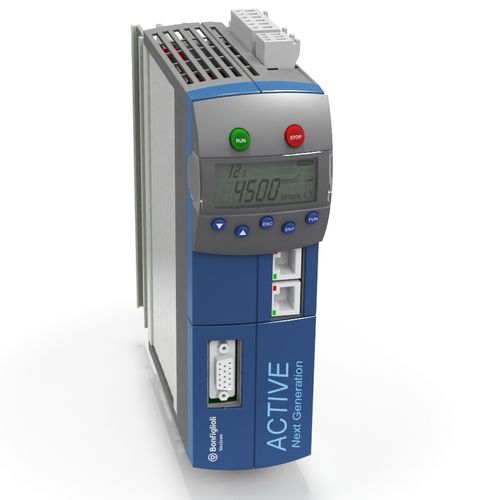

The servo inverter series ANG Active Next Generation, has been designed to provide machine builders with high performance. The new integrated micro controller allows enhancement of new functionalities such as cyclic synchronous positioning mode with cubic interpolation, brake control, and evaluation of feedback contact. This solution has been developed to meet the specific requirements of special machinery in a broad range of industries. With this new servo inverter series, Bonfiglioli offers the broadest connectivity with the most advanced control technology and the highest power density.

Key features

Different variants include field bus connection and encoder evaluation
Plug-in and programmable control terminals
Plug-in power terminals (up to 3kW)
DC link connection
Integrated brake chopper
Positioning function via field bus (Motion Control compatible to CiA DS402)
Cubic Interpolation
Integrated VPLC
Master/slave function with electronic gear
Power failure control
Integrated safe torque off STO (SIL 3 / PL e) function
Output frequency 0...599 Hz, higher frequencies on request
Diagnosis and setup via optional keypad or PC software

Parameter Name	Parameter Value
AC/DC	three-phase single-phase DC
Type	synchronous
Output signal	USB, ProfiNet, Ethernet/IP
Product applications	control positioning bus machine
Other characteristics	high-performance integrated programmable IP20 plug-in
Power (W)	250 - 250 0 - 0
