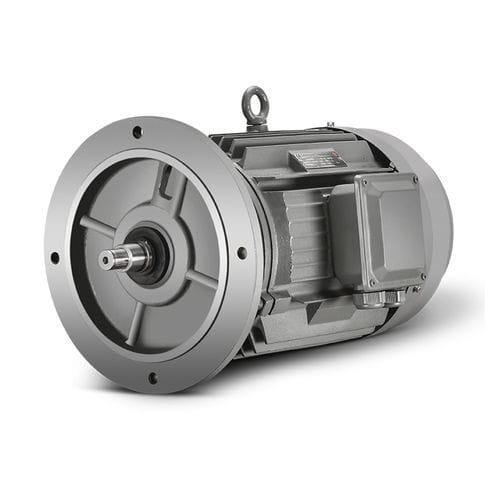

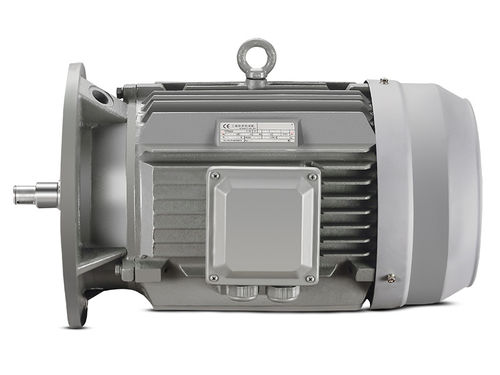

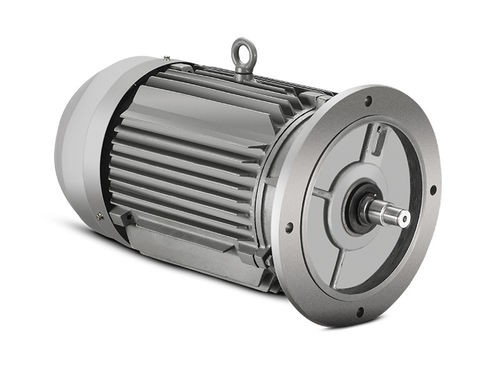

The ZB2 series motor is a new basic series motor designed on the basis of the Y2 series motor. It has a beautiful appearance, high efficiency, energy saving, insulation class F, and protection class IP54.

This series of motors are suitable for general occasions without flammable, explosive or corrosive gas and mechanical power without special requirements, such as metal cutting machine tools, water pumps, fans, transportation machinery, food machinery, agricultural machinery, etc.

This series of motors are suitable for Y-Δ starting and also suitable for heavy-load starting.

Structure description
The protection level of the motor is IP54;
The cooling method of the motor is IC411 (self-fan cooling);
The insulation class of the motor is F class.

Conditions of Use
Rated voltage: 380V;
Rated frequency: 50HZ;
Work mode: S1 (continuous work system);
The altitude does not exceed 1000M;
The maximum ambient air temperature should not exceed 40℃, and the minimum should be -15℃.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	asynchronous
Protection class	IP54
Applications	agricultural food
Other characteristics	high-efficiency energy-saving
Power (W)	120 - 120
Rotational speed (rpm)	1000 - 1000
