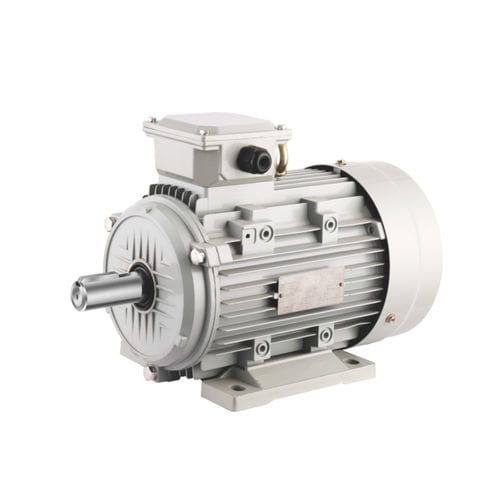

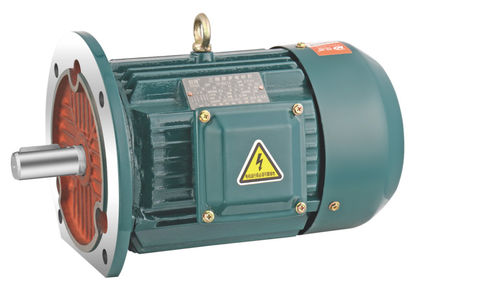

YE2 SERIES THREE-PHASE INDUCTION MOTOR

FEATURES
YE2 series aluminum three-phase asynchronous motor is a kind of TEFC squirrel cage motor with the national unified design, it has the characteristic of high efficiency,energysaving,hight starting torque,low noise,low vibration and easy maintenance,the grade of power and the mounting mesasurement are subject to the IEC standard.This sériés motor is commonly used in the machinery without special requirement specially for reducer,air compressor, water pump, oil pump packing and food machinery and so on.

OPERATIONG CONDITIONS
Ambient temperature:-15 °C<0<40°C
Altitude: not exceeding 1000 meters
Voltage: 220 / 380V 230 / 440V 380 / 660V 400 / 690V
Rated Frequency: 50HZ 60HZ
Connection: Star-connection for 3KW or less whereas delta-connection for 4KW or more.
Duty/Rating: Conntinuous(SI).
Insulation class: F, the température rise of the stator winding is examined at 80K(by résistance method).
Protection class: The main body of the motor is IP54, but the terminal box reaches IP55.
Cooling type: IC411

Parameter Name	Parameter Value
AC/DC	three-phase
Type	induction
Voltage (V)	220 - 230
Protection class	dust-proof IP54 IP55
Configuration	squirrel cage aluminum-frame compact
Number of poles	2-pole 4-pole
Cooling mechanism	air-cooled
Applications	for water pumps food oil pump packaging machine industrial for air compressors
Other characteristics	high-efficiency high-torque low-noise low-vibration
Power (W)	750 - 315000
Rotational speed (rpm)	1390 - 2970
