Product Description

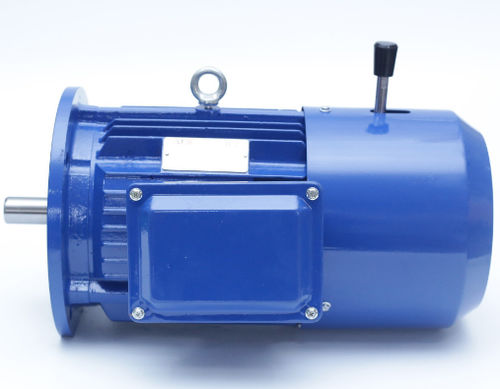

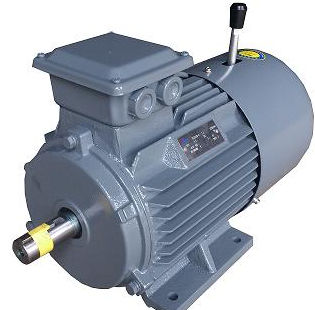

The YD series pole-changing multi-speed three-phase asynchronous electric motor is a derived series of the Y series electric motor in China, with the advantages including: excellent performance, elegant shape, good interchangeability with the overseas similar products. Its protective grade is IP44.

This series comprises three types: dual-speed, tri-speed4d, and four-speed and can change speed step by step. It can be used in the equipments that requires pole-changing in different steps, in the fields of: mine, weaving, printing, chemical industry, agricultural machinery etc, and also can simplify or replace the gear reducer in the mechanic drive.

The model code of the YD series electric motor comprises four parts: the first part "YD "indicates asynchronous electric motor; the digits of the second part indicate the central height of the frame (which remains the same with footing as well as without); the English letter of the third part is the code of the frame length (S-short frame, M-medium frame, L-long frame), the digit after the letter is the code of the iron core length; and the digit after the hyphen is the fourth part which indicates the poles of the electric motor.





OPERATION CONDITIONSo

Surrounding Temperature: varying according to the season, but not higher than 40??.

Altitude: not higher than the sea level elevation of 1000 meters.

Rate Voltage: 380V. Rate Frequency: 50 Hz.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	asynchronous
Protection class	IP44
Applications	agricultural
Other characteristics	multi-speed
Power (W)	450 - 45000
Torque (Nm)	1.2 - 2
Rotational speed (rpm)	500 - 3000
