Frame size - 56 - 355
Mounting arrangements B3, V5.V6, B5, V1.V3, B35

Voltages
200-690V line and inverter operation
Frame construction
Aluminium and Cast iron
Degree of protection
IP55, IP56, IP65, IP66
Température class
155 (F) according to 130 (B) or 180 (H) according to 155 (F)
Cooling method
IC411, IC410, IC416, IC418
Certificates
CE

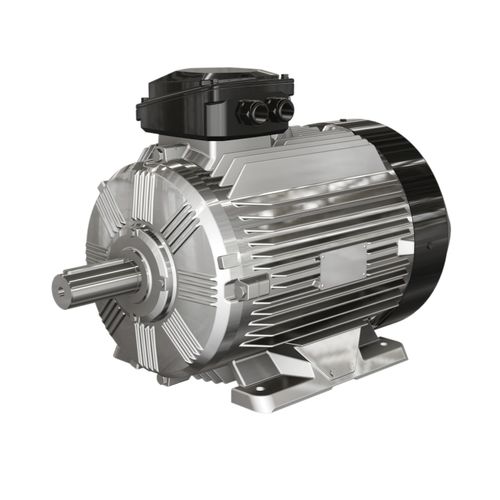

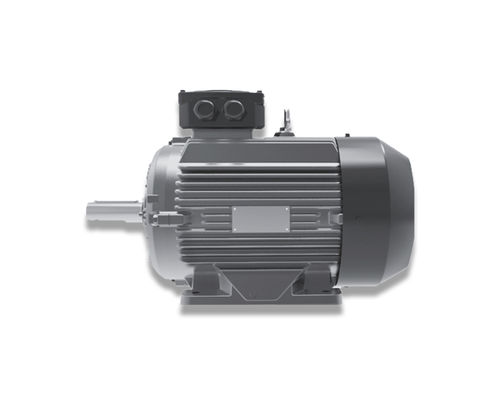

The unique design of the series of motors has an optimized cooling and advanced insulation system, reliability assurance, high efficiency and energy saving, easy in maintenance and is in line with IEC energy efficiency standards.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	asynchronous
Protection class	IP55 IP65 IP56
Configuration	aluminum-frame cast iron frame
Number of poles	10-pole 2-pole 4-pole 8-pole 6-pole
Other characteristics	low-voltage energy-saving high-efficiency IE3 inverter operated
Power (W)	60 - 315000
Torque (Nm)	54 - 54 2.5 - 2.5
Rotational speed (rpm)	925 - 2990
