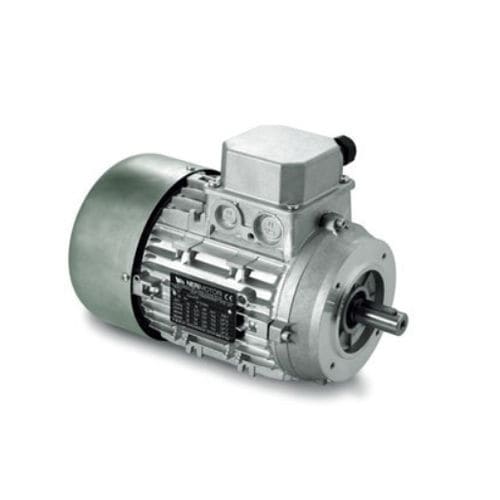

Series T 2/4/6/8/12/16/32 poles

Three-phase induction motors are the effective and efficient solution when transmission of movement in alternating current is needed.

Three-phase motors are available according to IEC international standards from size 50 to size 200.

In versions with flange B5, B14 and feet B3.
Power range is from Kw 0,03 to Kw 37,00.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	induction
Voltage (V)	460 - 480
Protection class	IP55 IP65 IP56 IP66 IP67
Configuration	squirrel-cage rotor aluminum-frame
Number of poles	4-pole 6-pole 8-pole 2-pole 12-pole 16-pole 32-pole
Cooling mechanism	air-cooled forced air-cooled
Applications	for the chemical industry for pumps for agribusiness for the pharmaceutical industry for furnaces and ovens industrial with built-in encoder for cutting machine for robotics packaging machine for crane for dispensers high-temperature for winding operations for lifting applications for wood-processing machines for atmospheres containing explosive dust for marine applications linear actuator agricultural for the textile industry
Other characteristics	custom low-voltage with gearbox high-efficiency low-noise UL certified
Power (W)	30 - 37000
Intensity (A)	0.3 - 65
Torque (Nm)	0.32 - 112
Rotational speed (rpm)	670 - 2750
Operating temperature (°C)	-15 - 40
