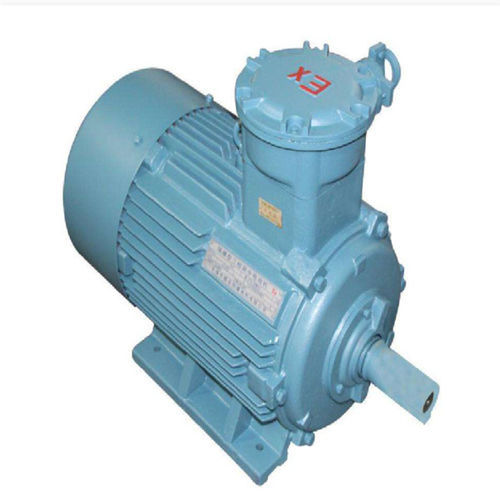

HTF2series three-phase asynchronous motor with variable frequency and speed regulation, namely YVP series three-phase asynchronous motor with variable frequency and speed regulation, is a motor that can change the power supply frequency and achieve the purpose of motor speed regulation.

[Power supply conditions] Voltage fluctuation within ±5% (short-term allowable fluctuation ±10%); frequency fluctuation within ±2% (short-term allowable fluctuation ±5%). The motor and frequency fluctuate within ±5% at the same time, and the frequency fluctuation does not exceed ±2%.
[Place of use] It is suitable for machinery, fans, pumps, conveyor line automation equipment and machine tools in metallurgy, chemical, textile, pharmaceutical, printing, packaging, food and other industries.
[Ambient temperature] The ambient temperature varies with the season, but the highest is not more than +40°C, and the lowest is not lower than -15°C (except for special ambient temperature motors)
[Altitude] no more than 1000m (except high-altitude motors)
[Transmission mode] It is allowed to use elastic coupling, spur gear and pulley for transmission
[Rotation direction] clockwise (default), counterclockwise (order to be specified)
[Startup mode]Direct startup, frequency conversion startup, etc.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	asynchronous
Protection class	IP54
Number of poles	4-pole 6-pole 8-pole 2-pole 10-pole
Applications	for pumps for conveyors for machine tools for the chemical industry for the food industry for the textile industry for the pharmaceutical industry
Other characteristics	variable-speed variable-frequency
Power (W)	180 - 375000
