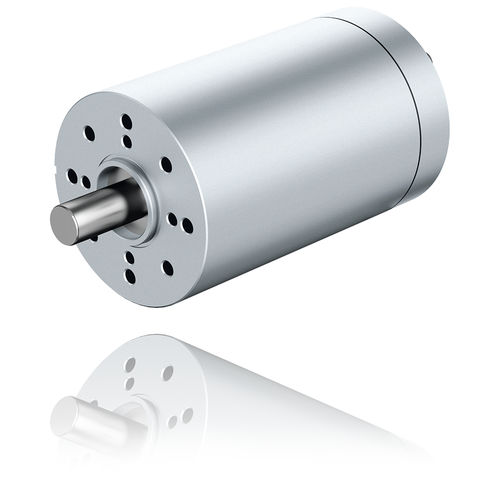

The ECI series of electronically commutated internal rotor motors from ebm-papst boasts a high power density and dynamic characteristics. They are ideal for robotics, and for many other applications. In the power range from 30 to 750 Watts, they are ready to move big things. In combination with planetary and crown gearheads, they exploit their full potential.

High-power drive unit for automation applications

Modern drive solutions for automation applications demand tailor-made motors. Modular systems permitting flexible configuration for individual drive system design provide the right solution. With its modern ECI family of motors, ebm-papst has for many years been supplying a wide range of drive units, control electronics, transmissions and brake and sensor modules, which can all be combined to produce any desired drive system.

The manufacturer is now extending the existing 30 to 63 mm diameter motor range with outputs of 30 to 400 W to include a new power level: The ECI 80 with 80 mm diameter now offers a rated and drive power of up to 750 W in combination with a compact design for demanding applications, including robotics, conveyor, warehousing and sorting systems, medical technology, battery-operated vehicles and driverless transportation systems.

Parameter Name	Parameter Value
AC/DC	three-phase
Type	electronically commutated
Voltage (V)	24 - 48
Protection class	IP54 IP65
Configuration	modular with brake with integrated driver and coder compact
Applications	for medical equipment for robotics conveyor
Other characteristics	high-power
Power (W)	30 - 750
Torque (Nm)	1.8 - 1.8 5.5 - 5.5
Diameter (mm)	0.03 - 0.08
