Adopt optimized design, module combination.
Right angle output, wide application.
It adopts advanced grinding technology and shape modification technology, which has high bearing capacity, reliable operation and low noise.
Good sealing performance, suitable for a wide range of working conditions.
High transmission efficiency and energy saving.
Can be combined with various motors with wider ratio range
Cost-effective and easy to maintain.

Product Form

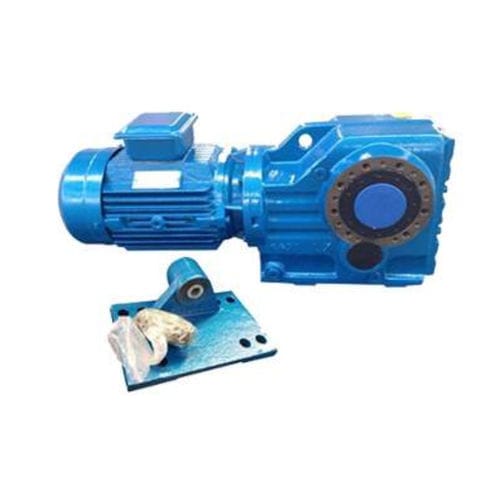

Assembly Form: Foot mounted, Flange mounted, B14 small flange mounted, torque arm mounted.
Right Angle Output: Solid shaft, Hollow shaft ( flat key, shrink disk, involute spline), Splined solid shaft

Technical Data

Size: KAT37~KAT187
Technical Data(N·m): 200~50000

Parameter Name	Parameter Value
Motor type	three-phase
Type	bevel helical
Shaft orientation	right angle
Shaft configuration	hollow-shaft
Power (W)	1000 - 2000 2000 - 5000 5000 - 10000 20000 - 50000 50000 - 100000 100000 - 200000
Performance	high-efficiency high-capacity high-torque
Other characteristics	efficiency three-stage flange-mount foot-mounted solid-shaft flat
Gear ratio (unit)	5.36 - 179.86
