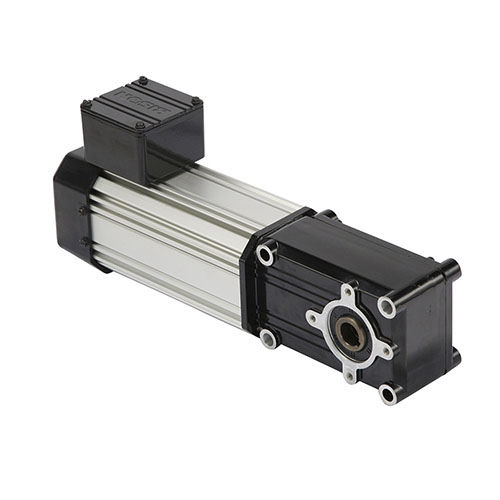

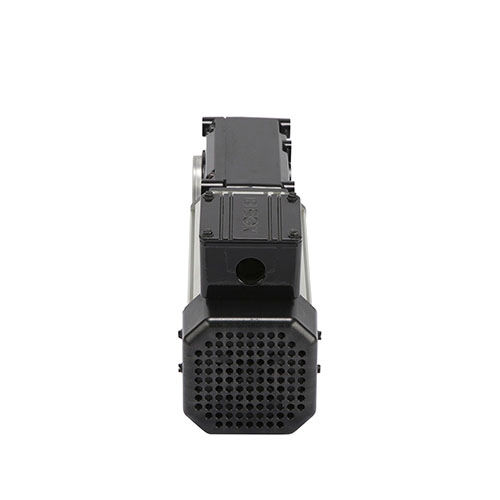

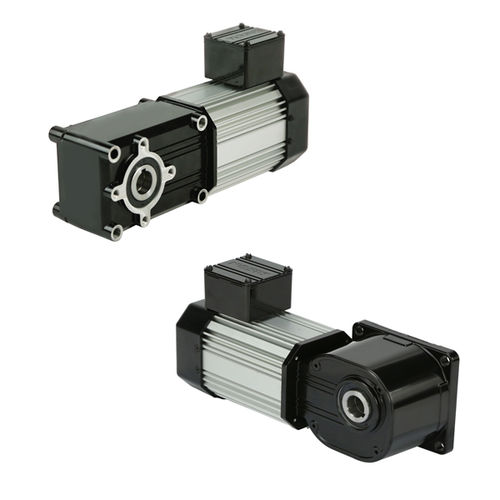

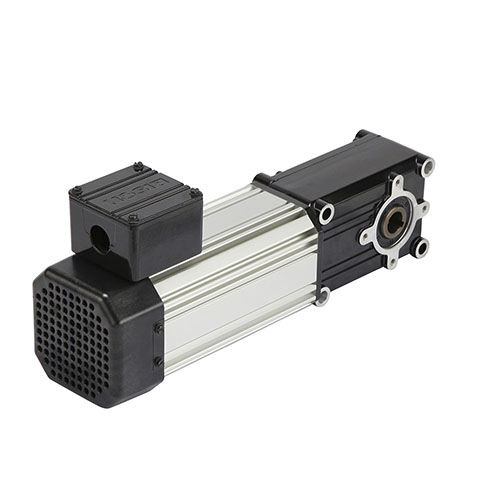

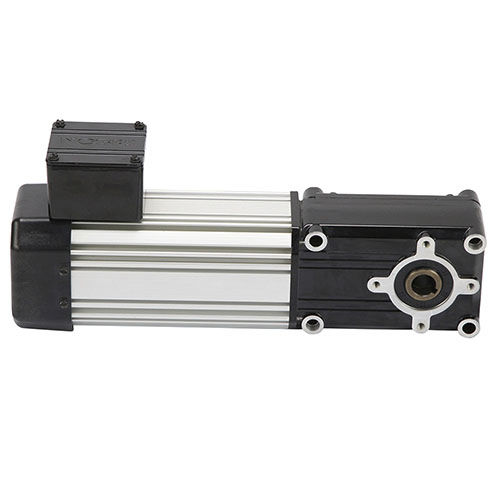

The AC PowerSTAR® Right-angle gearmotor features advanced precision hypoid gearing that delivers higher torque output in a smaller profile along with high energy efficiency sustained throughout all 13 standard gear ratios. The PowerSTAR also features a sleek design that offers easy mounting in several orientations, ground gearing for low noise, and 712, 720, 725 and 730 frame sizes to fit a variety of design specifications.

Available in 115V Single phase, 115/230V Single Phase, 230V 3 phase inverter duty and 230/400-460V 3 phase inverter duty motor options. CAPACITORS REQUIRED AND SOLD SEPARATELY FOR ALL SINGLE PHASE UNITS. Check accessories tab or consult factory for matching capacitor. Consult factory for custom requests.

Stock:DNS
Input HP:1/8
Torque (in-lbs):35
OHL:270
CE:No
CSA:No
ROHS:Yes
CuRus:No
Insulation Class:B4
Duty Cycle:Continuous
Accessories:Capacitors required - offered separately. Please see accessory tab for more information.

Parameter Name	Parameter Value
Motor type	three-phase single-phase
Type	hypoid
Shaft orientation	right angle
Power (W)	100 - 500 10 - 50 50 - 100
Torque (Nm)	1 - 5 5 - 10 10 - 20 20 - 50 50 - 100 100 - 200
Product applications	industrial
Other characteristics	compact low-noise precision IP54 two-stage three-stage with integrated inverter
Gear ratio (unit)	10 - 240.4
