Three-phase gear-motor GH/GV Series

Three-phase gear-motor GH/GV Series

Three-phase gear-motor GH/GV Series

About


Components:
1. Housing:
Frame Size 18-28, Aluminum alloy ADC12
Frame Size 32-50, Cast iron HT200
2. Gears: Helical Gears, 2 or 3 stage
3. Input Configurations:
GH/GV Series - Compact Motor, 1 Phase / 3 Phase, Optional Brake
GHM/GVM Series - IEC Flange
GHD/GVD Series - Solid Shaft Input
4. Output Configurations:
Solid Shaft Output

Features:
1. Compact structure
2. Wide range of gear ratio, ratio 250-1800 available by 2 frame sizes combination
3. Different input options available, flexible mounting ways and positions
4. 3 phase or 1 phase motor available, optional brake, aluminum alloy, TEFC IP54. IP55 aluminum alloy terminal box, dustproof and waterproof

Installation:

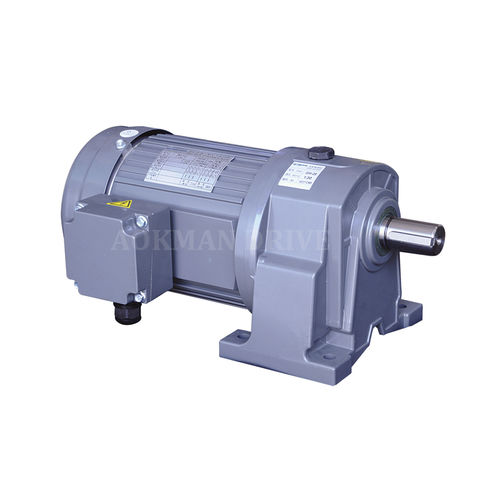

GH Series - Foot Mounted

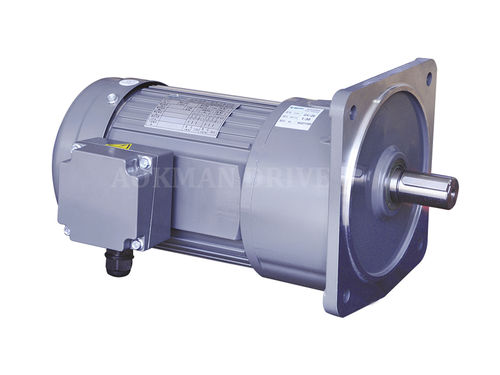

GV Series - Flange Mounted



PARAMETERS

Parameter Name Parameter Value
Motor type
  • three-phase
  • single-phase
Type
helical
Shaft orientation
coaxial
Power (W)
  • 100 - 500
  • 500 - 1000
  • 1000 - 2000
  • 2000 - 5000
Product applications
flange
Other characteristics
  • compact
  • IP54
  • cast iron
  • IP55
