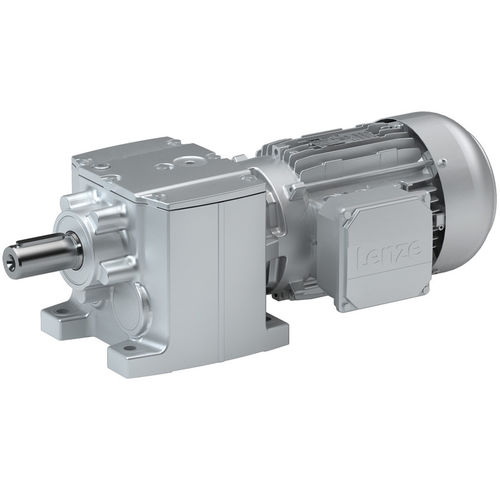

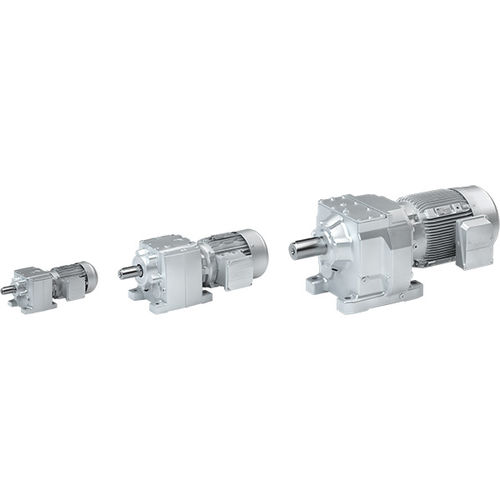

Three-phase gear-motor g500-H + m500

Three-phase gear-motor g500-H + m500

Three-phase gear-motor g500-H + m500

About


The robust and universally applicable helical geared motors are an axial drive unit and comply with efficiency classes IE2 and IE3.

Thanks to the helical gearbox, they have high permissible radial forces, closely stepped ratios and low backlash.

- Shaft dimensions in line with market standard and standardized flanges
- Can be used universally due to the market-oriented modular system
- Easy connection via terminal box or conventional plug-in connectors for fast commissioning
- Can be combined with i510 cabinet, i550 cabinet and i550 protec frequency inverters



PARAMETERS

Parameter Name Parameter Value
Motor type
three-phase
Type
helical
Shaft orientation
coaxial
Shaft configuration
solid-shaft
Power (W)
  • 100 - 500
  • 500 - 1000
  • 1000 - 2000
  • 2000 - 5000
  • 5000 - 10000
  • 10000 - 20000
  • 20000 - 50000
  • 50000 - 100000
Torque (Nm)
  • 10 - 20
  • 1 - 5
  • 5 - 10
  • 20 - 50
  • 50 - 100
  • 100 - 200
  • 200 - 500
  • 500 - 1000
  • 1000 - 2000
  • 2000 - 5000
  • 10000 - 10000
  • 5000 - 10000
Performance
low-backlash
Other characteristics
  • compact
  • two-stage
  • three-stage
  • IE3
  • IE2
  • four-stage
  • modular
Gear ratio (unit)
0 - 3240
Operating temperature (°C)
-20 - 40
