About

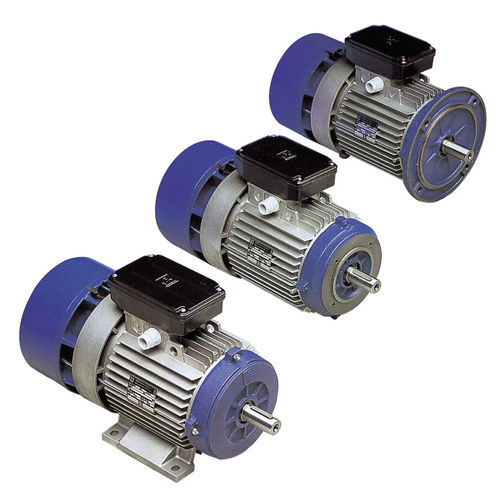

The most popular brake motor with AC brake, with fast intervention times and high braking capacities. Also available in the version with DC brake.
• IEC Metric Motors from 71 to 315 frame size
• Totally Enclosed Fan Cooled (TEFC)
• BAX series includes single speed brake motors for continuous duty and IE2 / IE3 efficiency class (regulation EU 2019/1781). Alternatively the BA series can be made in the ‘Enhanced
• Power’ version for intermittent duty only
• IP 54 enclosure (IP55 on request)
• F class insulation
• AC or and DC Brake
• Very high and adjustable brake torque
• Heavy Duty Cycle
• Low Maintenance
• Aluminum frame up to 132 frame size, cast iron frame from 160 to 315 frame size
• Cast iron flanges starting from 100 frame size
• Motors with NEMA dimensioned shafts and flanges available on request
• The brake moving element and the brake coil have a laminated magnetic nucleus to reduce losses and to allow very fast brake
• The cooling fan is fitted between the motor and the braking assembly
• Manual brake release screw
• Hex hole on nondrive shaft end for manual rotation (on request starting from 160 frame size)
• cCSAus mark and compliance to efficiency rule EISA (CC051A) and NRC (on request)
CCC mark and compliance to Chinese efficency rule and China Energy Label (on request)
BIS certification – ISI mark (on request)
• EAC mark (on request)
• NOM mark (on request)
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
three-phase
|
| Type |
asynchronous
|
| Voltage (V) |
230 - 230
|
| Protection class |
|
| Configuration |
|
| Number of poles |
|
| Applications |
heavy-duty
|
| Other characteristics |
|
| Power (W) |
250 - 132000
|
| Torque (Nm) |
|
| Rotational speed (rpm) |
745 - 2958
|
