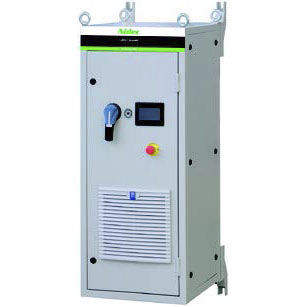

Leroy-Somer's range of high-power modular drives is evolving in the shape of Powerdrive MD2 - an even more compact and user-friendly drive. The combination of power modules and the choice of cooling method make it possible to create multiple optimized configurations: 6-pulse, low-frequency harmonics, regenerative or DC bus solution. Powerdrive MD2 provides high-performance control of motors, making it the ideal choice for any industrial or commercial variable speed application up to 2800 kW (pumping, ventilation, compression, etc).

For artificial lift, Leroy-Somer has developed a dedicated offering with options for export pumps, PCP, ESP and ESPCP, Onshore and Offshore installations.

Advantages
Power to suit your needs: modular design, flexible.
6,12,18,24 pulses or Active Front End (Low Harmonics or Regenerative)
Energy savings: POWERDRIVE MD2 is the Solution!
Systems: to customer specification, complete turnkey offer.
Integrated safety functions: Safe Torque Off inputs, diagnostics menu, emergency run mode.
Permanent magnet synchronous motors in virtual sensor mode: Elimination of restrictions relating to the sensor wiring, 75% of Tn on starting, precise speed control from 1/20th of the rated speed
Optimized dimensions: 250 kW 6 pulses in 400 mm cabinet
Optimized operation: self-diagnostics of power and control on each power-up, customized functions, maintenance reduced to the absolute minimum.

Parameter Name	Parameter Value
Type	three-phase
Mounting	floor-standing
Applications	for industrial applications for asynchronous motors for permanent magnet motors for high-power motors
Protection class	IP54 IP21
Other characteristics	open-loop compact high-performance modular regenerative high-power air-cooled variable-speed four-quadrant water-cooled low-harmonic
Power (W)	450000 - 800000
Intensity (A)	90 - 3000
Output frequency	Max.: 62 HzMin.: 48 Hz
