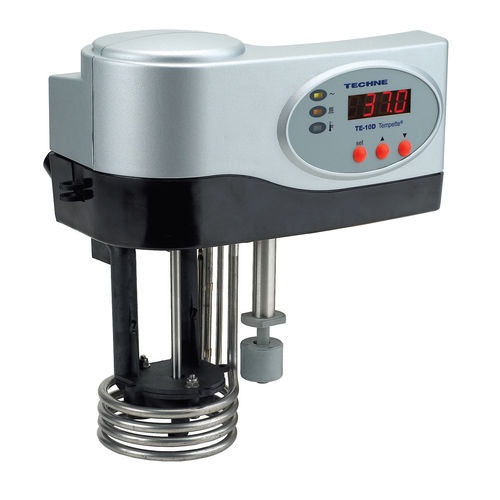

Techne® invented the "Clip On" thermoregulator in 1948, and now offer four units. Thermoregulators are designed to be used with the Techne® unheated water baths or any other suitable laboratory vessels. They will heat, circulate and safely control the temperature of the liquid in the bath within precise limits.

• Temperature range of -40°C to 120°C
• Please note for sub-ambient cooling a Dip Cooler or Flow Cooler is required. Click here.
• Applications 100°C require Techne bath oil. Click here.

• Excellent temperature stability: ±0.01°C at 40°C
• 4 digit setting with a bright LED digital temperature display
• Suitable for most routine laboratory applications
• User adjustable over-temperature cut-out
• Low liquid level cut-out as standard

Sub-ambient cooling
This thermoregulator can be used for sub-ambient cooling, right down to -40°C, although a low-temperature liquid is required below 0°C. Sub-ambient cooling can be achieved using the cooling coil accessory (part number FCC01) connected to an external chilling system, for example a cold tap. Alternatively a Techne dip-cooler or flow cooler could be used as a method of chilling.

External circulation
This thermoregulator can be used in several ways. (1) Stand-alone waterbath temperature controller with precision accuracy and stirring action. (2) Pump for recirculating chilled liquid produced in an external chiller allowing sub-ambient water bath temperature. (3) Pump for providing temperature control to an external system or device.

Parameter Name	Parameter Value
Display	with LED display
Type	PID fluid circulation
Use	for circulating baths
Maximum temperature (°C)	-40 - 120
