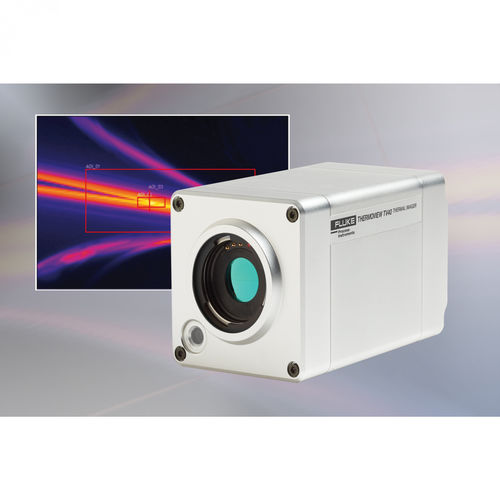

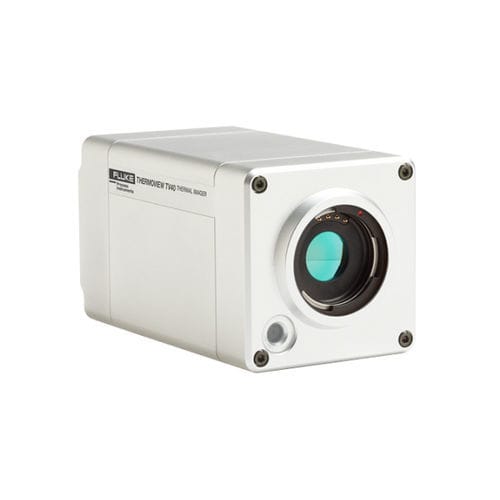

ThermoView TV40 is a high-performance industrial thermal imaging system for fixed installation designed for factory automation applications. It integrates a visible-light camera and software for temperature control, monitoring, and data archiving.

• Wide temperature range: -10 to 1200 °C (14 to 2192 °F)
• Rugged aluminum housing, IP67 (NEMA 4)

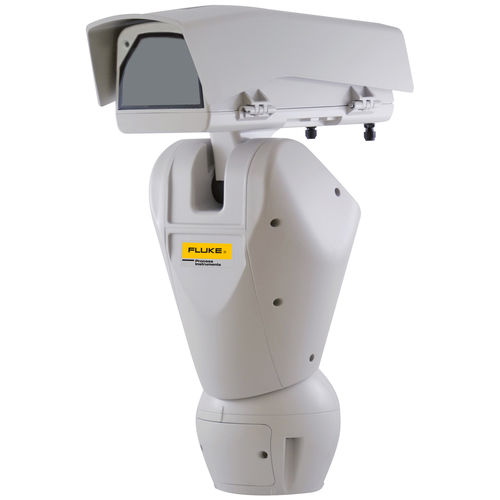

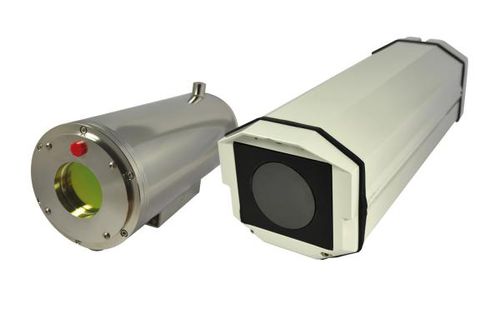

• Ambient temperatures to 200 °C (392 °F) with high-temperature enclosure
• Air purge and accessories available
• IR-Fusion technology: simultaneous thermal and visible sighting
• Remote motorized focus
• 320 x 240 and 640 x 480 focal plane array
• 9 or 60 Hz models available
• GigE Vision interface
• LAN/Ethernet with PoE for communication with the camera provides access to Ethernet, Web server and ThermoView Software
• Multiple field interchangeable lens options
• 2-year warranty

Parameter Name	Parameter Value
Applications	rugged industrial for the metallurgical industry for the glass industry for process monitoring
Function	thermal imaging monitoring
Spectrum	infrared, visible, multi-spectral
Interface	Ethernet
Resolution level	HD
Other characteristics	IP67 robust fixed
