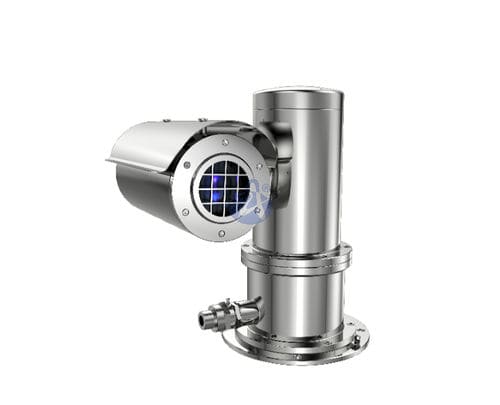

ZAS661-IR is explosion proof thermal imaging camera Stainless Steel, which built-in large aperture high sensitivity thermal imaging camera, and equipped with 360° integrated anti-corrosion pan tilt, to achieve marine environment monitoring requirements.

Anti-corrosion Enclosure

ZAS661-IR is ZUOAN developed anti-corrosion PTZ station, built-in video compression coding, easy for network transmisstion. Its crust is made of anti-corrosion stainless steel 316L, which can be widely used in marine area, port, drilling platform and harbor.

Intelligent thermal imaging camera

ZAS661-IR adopts intelligent high-temperature pre-alarming output with various grades. It is also higher detection efficiency and less misinformation.

360 ° Endless Rotation

ZAS661-IR anti-corrosion thermal imaging PTZ camera embedded intelligent analysis supports motion detection, line crossing detection, regional entry/exit detection and intelligent PTZ rotation.

Professional photoelectric zooming technology

Besides the fixed focus lens, ZAS661-IR also support continuous zooming lens like 25-75mm. Customer can get clear imaging after set preset surveillance points.

Wide application

ZAS661-IR is mainly applicable in scenarios of zero visibility and strong light source interference, such as airport, harbor, perimeter, oil filed and marine area.

Mechanical

Housing
Stainless steel 304 or 316L

IP
IP68

Cable thread hole
1pcs M25*1.5 or M27*1.25

Wiper
Optional

Electrical

Voltage
AC100-240V or DC24Vor AC24V

Power
50W /70W (with thermostat)

Optional surge protector
TVS 6000V

Optional within fiber optical cable
Multimode, or signal mode

Ambient

Ambient temperature
-25 to +60℃

Parameter Name	Parameter Value
Applications	industrial
Technology	digital
Function	monitoring surveillance detection thermal imaging
Spectrum	IR
Interface	ONVIF
Other characteristics	PTZ explosion-proof 360° swivel fixed high-temperature
