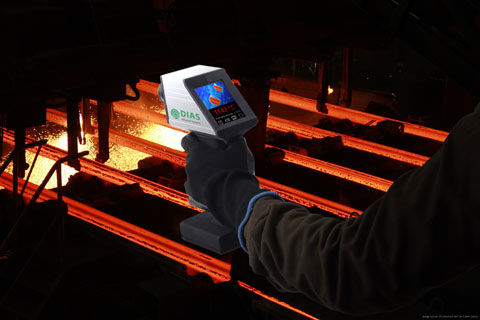

For process monitoring in metallurgy but also in the ceramic and cement industry as well as in glass production and processing, the hand-held thermal imagers in the new series PYROVIEW portable are now available.

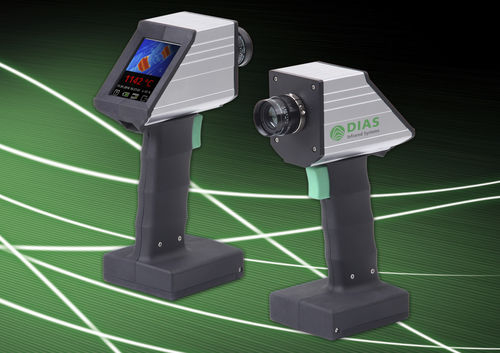

The PYROVIEW 480N portable is the world’s first handheld infrared camera for the short-wave measurement of high temperatures.

- Measuring temperatures from 600 °C to 1500 °C, optionally 1400 °C to 3000 °C
- High dynamic image sensor for large continuous measuring ranges
- Minimize emissivity related measurement errors by measuring at short wavelengths in the spectral range 0.8 microns to 1.1 microns
- Color touchscreen display for measured value indication and adjustment
- Capturing freeze frames and sequences
- Ethernet connection for data transmission

Parameter Name	Parameter Value
Function	thermal imaging
Spectrum	infrared
Sensor	microbolometer
Other characteristics	portable high-temperature
