Thermal imaging camera EVIDIR® alpha

Thermal imaging camera EVIDIR® alpha

Thermal imaging camera EVIDIR® alpha

About


Make heat visible to precisely measure and evaluate temperature data. With the EVIDIR alpha thermal imaging camera, you can take thermal images and thermograms with outstanding image quality.

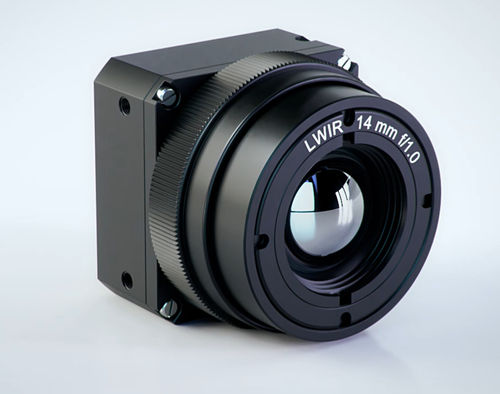

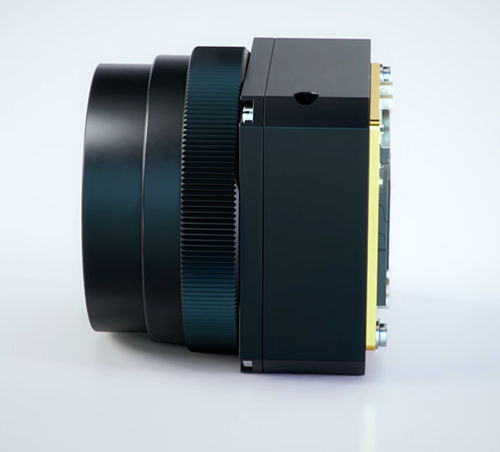

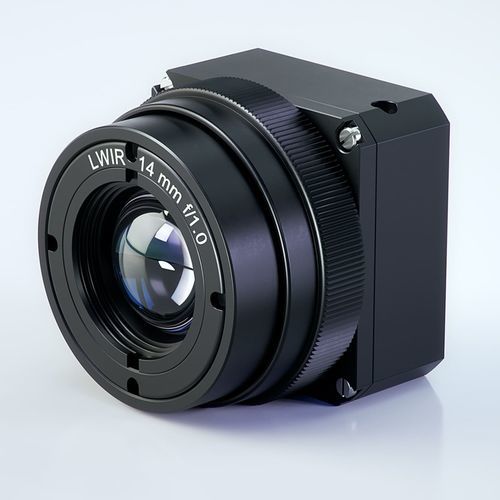

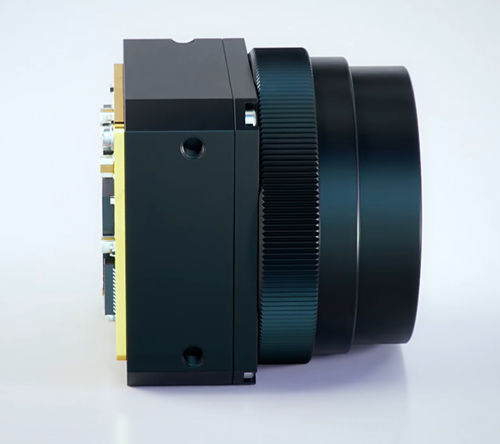

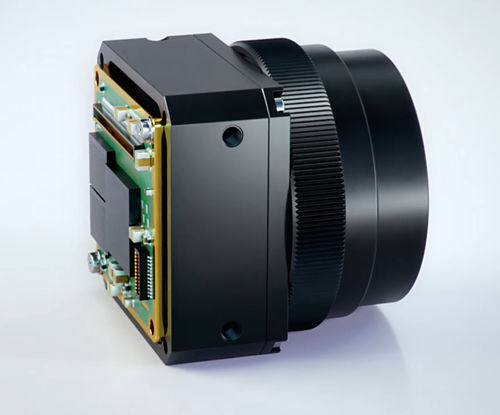

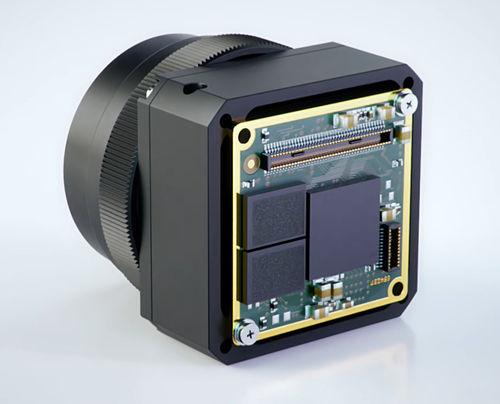

Thermal imaging camera and infrared modules EVIDIR alpha - one size for all variants
Visualization and analysis of temperature distributions
The new family of EVIDIR alpha thermal imaging cameras feature outstanding thermal image quality and optimized size, weight and performance. Infrared camera modules for system integration.

Based on modern 12-μm uncooled microbolometer technology, EVIDIR alpha thermal imaging camera modules deliver sharp and detailed thermal images with a thermal sensitivity of less than 40 mK (NETD).
The modular design gives customers maximum flexibility
With the modular approach, EVIDIR gives the user the greatest flexibility possible so dimensions, interface and software won't change, regardless of how it is used:

• Viewer or radiometer,
• without shutter, with internal mechanical shutter or both,
• VGA (640x480) or QVGA (320x240) resolution,
• <9 Hz or 60 Hz.

Jenoptik thermal imaging camera: Outstanding image quality and precision radiometry acquired from experience

EVIDIR alpha infrared camera modules provide thermal images showing all details. This first-class quality is based on more than 40 years of Jenoptik's experience in the design, development and production of high-end infrared technology solutions.



PARAMETERS

Parameter Name Parameter Value
Applications
  • industrial
  • for the automotive industry
  • for process monitoring
  • fire detection
Technology
VGA
Function
  • security
  • thermal imaging
  • safety
Spectrum
infrared, visible
Sensor
CMOS, microbolometer
Interface
  • GigE
  • VGA
Other characteristics
  • OEM
  • high-end
  • uncooled
