About

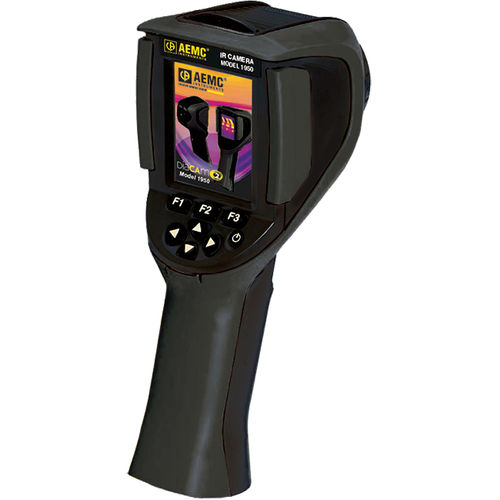

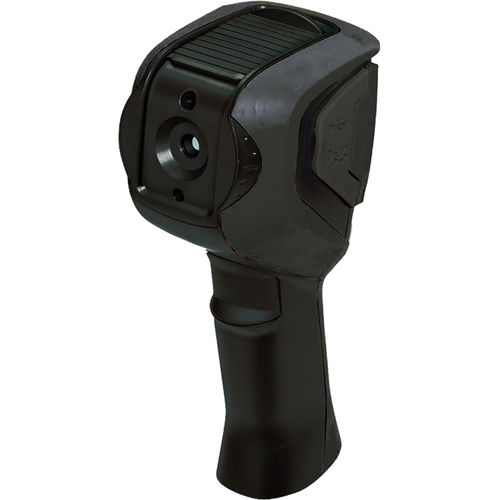

The Thermal Imaging IR Camera Model 1950 is equipped with infrared thermography detection technology that has become an indispensable means ensuring safety in industrial production.
It is used in sectors of industry as diverse as metallurgy and steel-making, electric power, petroleum, automation, the exploitation of natural gas, and transportation, and in other committed professions such as fire-fighting and border surveillance.
Infrared thermal imaging provides a real-time non-contact inspection method. This detection method does not require you to shut off power, shut down the machines or interrupt production. It can diagnose latent malfunctions in advance, and so forestall their occurrence and prevent production incidents. Thermal imaging is an innovative non-contact evaluation technique that is safe, reliable, and rapid.

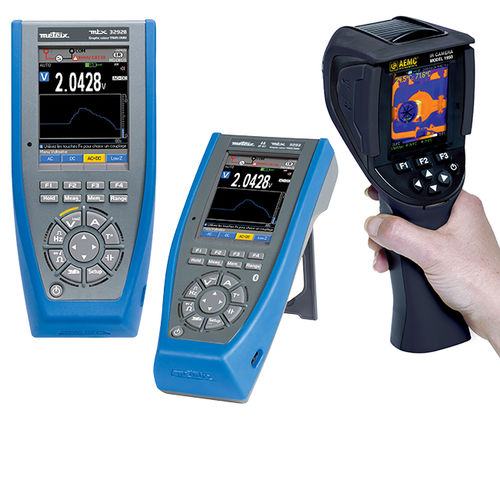

Our thermal imaging cameras communicate with other AEMC Bluetooth™ capable products.
Model 1950 - Cat. #2121.40: Includes carrying case, eUSB cable,(4) NiMH rechargeable batteries, micro SD card with adapter, Bluetooth headset, quick start guide and a USB drive with CAmReport software, and user and software manuals.
Specifications
DETECTOR SPECIFICATIONS
Detector Resolution - 80 x 80
Type - UFPA microbolometer, 8-14µm
Frequency - 9Hz
Thermal Sensitivity (NETD) - 80mK @ 86°F (30°C)
TEMPERATURE MEASUREMENT
Temperature Range - -4° to +482°F (-20° to +250°C)
Accuracy - ± 3.6° F (±2 °C) or ±2% of Reading
INFRARED IMAGE
Field of View - 20° x 20°
IFOV (Spatial Resolution) - 4.4mrad
Minimum Focus Distance - 1.3ft (0.4m), fixed focus
VISUAL IMAGE
Resolution - 320 x 240
Minimum Focus Distance - 2” (0.05m), fixed focus
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
|
| Technology |
digital
|
| Function |
|
| Spectrum |
infrared
|
| Sensor |
microbolometer
|
| Interface |
USB
|
| Resolution level |
320 x 240
|
| Other characteristics |
fixed
|
