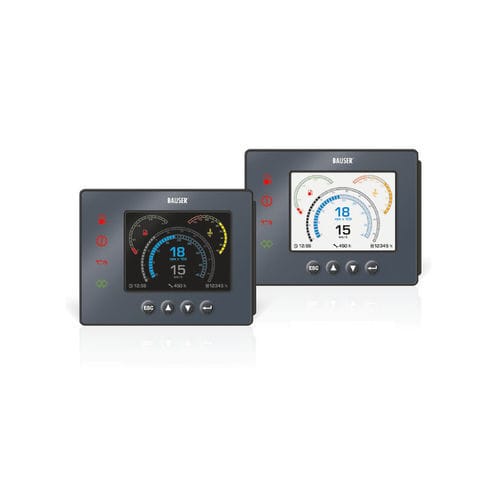

TFT display 909

TFT display 909

TFT display 909

About


Excellent visualisation: 3.5” display, 320x240 pixels, 4 buttons, 4 LED warning lamps, digital and analogue inputs as well as a CAN-bus interface with CANopen or SAE J1939 protocols, RTC with battery backup for date and time, further clear text indications like errors, diagnostic data etc.

Casing:
Material: PBT-GB30, black Front side: chemical and UV resistant polyester foil Viewing area: low-reflective mineral glass
Aspect ratio:
4:3
Mounting direction:
Horizontal
Warning lamps:
4 LEDs, can be read clearly under direct sunlight
Buttons:
4 buttons with a clear tactile feedback
Electrical interfaces:
2x analogue or digital inputs (custom configuration)
1x digital input
1x voltage supply measuring
1x CAN ISO 11898 interface
Protocol:
CANopen, SAE J1939
Date and time:
Real Time Clock with internal battery backup
Voltage supply:
8…36 VDC
Ambient temperature:
-30°C…+85°C
Storage temperature:
-40°C…+85°C
Electrical connection:
Compatible with 10 pole VW connector type 6X0 973 815
Fixing:
Metal clamps with screws
Protection class:
IP67 front, IP40 back (optionally IP65)
Vibration resistance:
EN 60068-2-64
Shock resistance:
EN 60068-2-27, EN 60068-2-29
EMC:
DIN EN 12895, EN 55022, EN 61000-4-2, -3, -4, -6, ISO 7637-2, -3, ISO 16750-2
Approval:
CE
Options:
GoretexTM membrane, back IP65, backlit buttons, second CAN ISO 11898 interface, buzzer, fixing with 4 snap-in-clamps (shorter mounting depth), custom front foil, mounting direction: vertical, 5 LED warning lamps, electrical connection: Tyco Super Seal, 26 poles, instruments with TFT colour displays in 4.3”, 5” and 7” – on request



PARAMETERS

Parameter Name Parameter Value
Type
  • TFT
  • color
Format
320 x 240
Applications
control
Other characteristics
  • electronic
  • LED-backlit
  • CANopen
  • 4-key
  • IP65
