About

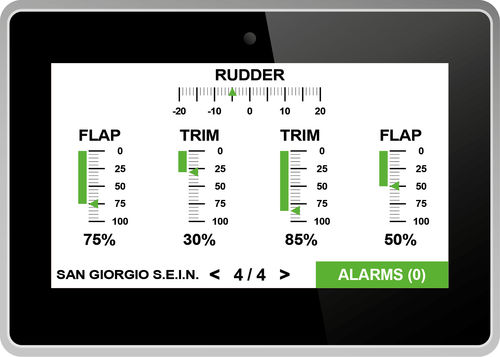

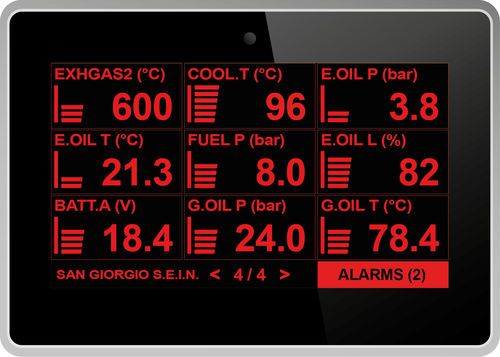

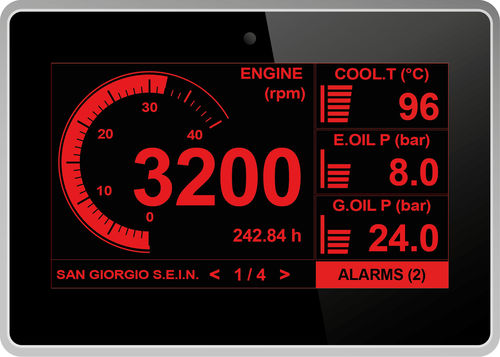

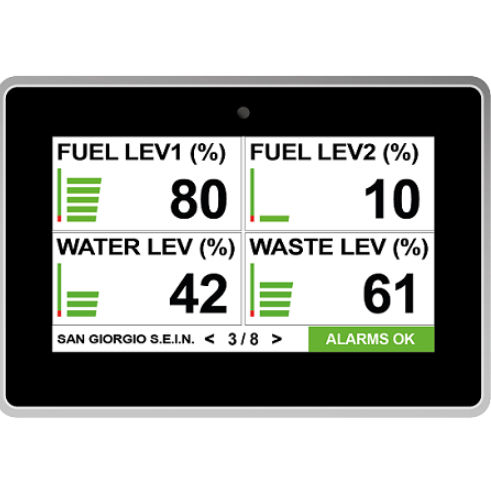

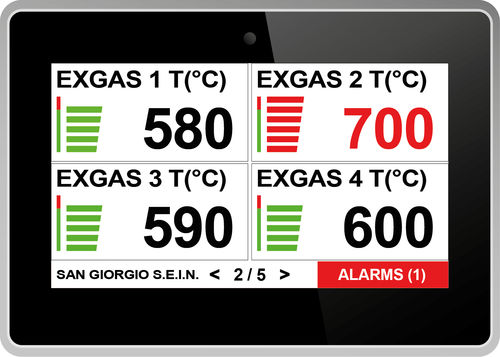

High performance compact monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a 5” touch screen display with integrated ambient light sensor and special software designed for visibility in any light and operating condition. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. Two J1939 CAN Bus ports, one also compatible with NMEA2000 standard, can be used to interface multifunction navigation systems. It can be customised and programmed via USB interface.
Dimensions144 x 100 x 69mm
Mounting hole135 x 91mm
Display5” color TFT LCD, high brightness 900cd
Resolutions480 x 272 pixel
Touch screenCapacitive
FrameSatin anodized aluminum
Black satin anodized aluminum
Inputs / Outputs4 x Analog inputs 0-10V / 4-20mA
4 x Analog inputs 0-300Ω
1 x Frequency input W alternator / pickup
5 x Digital Inputs / outputs
Communication Ports2 x CAN Bus 2.0B
1 x NMEA2000
1 x NMEA0183
1 x RS232/485
1 x USB OTG
Power supply9-36 V <500mA
Operating temperature-20 +70 °C
Protection gradeIP65
Weight540g
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Other characteristic |
digital, compact, TFT, with touchscreen
|
