Torsionally Rigid Coupling for Test Benches.
The FLEXDUR - HighSpeed (short form: FD-HS) All-metal couplings are developed and manufactured to the highest standards, especially for applications with higher speeds.

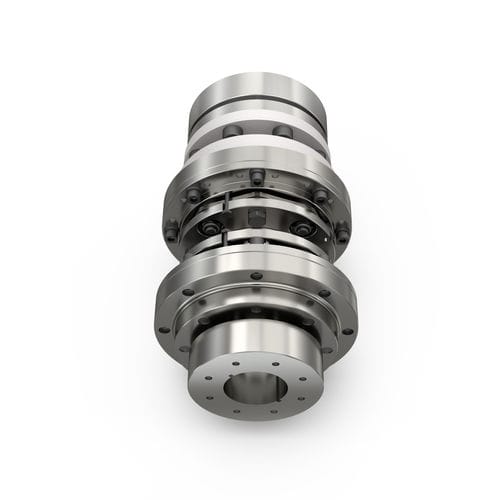

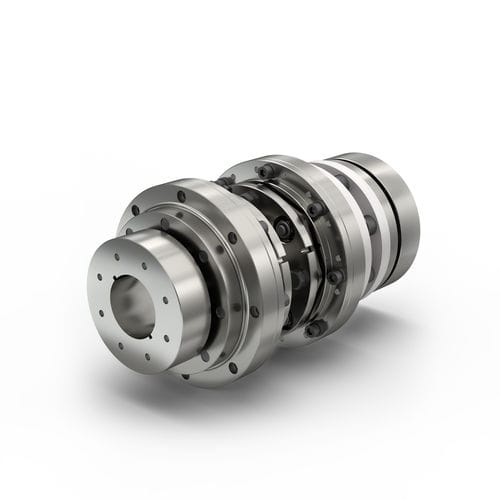

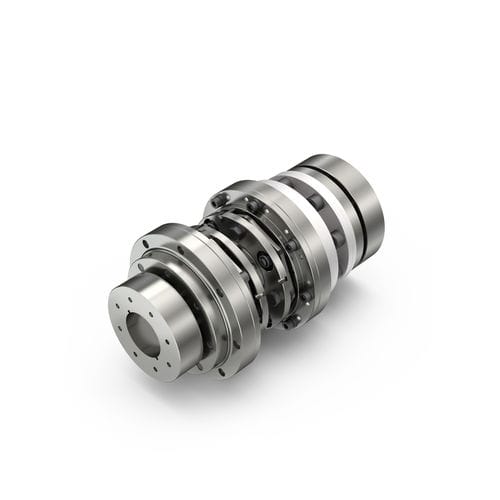

FLEXDUR – HIGHSPEED
Advantages
Torsionally rigid and backlash-free torque transmission
Can be directly adapted to torque sensors
Suitable for very high speeds
Compensation of axial, radial and angular shaft displacements
Small restoring forces at shaft displacement
Low mass inertia due to high power density
For use at ambient temperatures from -35 °C to +110 °C
Neither maintenance, nor lubrication required
Almost unlimited lifetime and wear-free at proper shaft alignment
Modular type
FLEXDUR – HIGHSPEED
Designed to Customer
Couplings individually developed according to customer requirements
Effective and efficient customer solutions through largely modular components
Close cooperation with our partners: consulting, development, design, manufacturing, integration
Customer-specific production and logistics concepts, as well as after-sales service
Global availability
For standard products as well as for production in small batch sizes.

Parameter Name	Parameter Value
Type	rigid finned torsionally rigid
Product applications	for shafts transmission industrial for mechanical power transmission engine for machines for test benches
Other characteristics	backlash-free torque shaft-hub high-speed with clamp custom-made custom
Installation system	sleeve
Torque (Nm)	500 - 500 320 - 320
Rotational speed (rpm)	14000 - 33000
