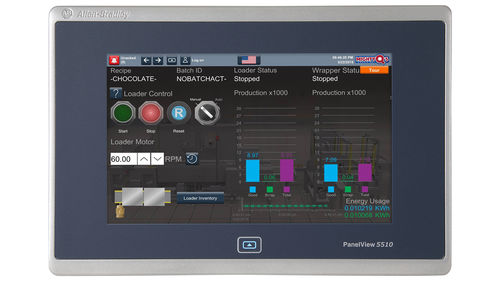

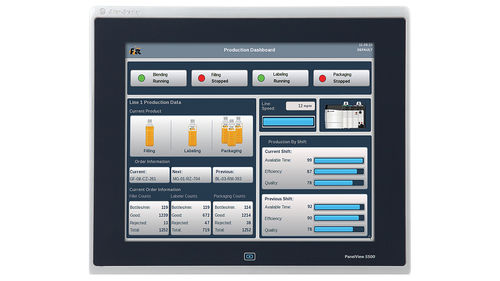

Our PanelView™ 5000 Graphic Terminals offer an intuitive, modern design and provide enhanced Logix integration that uses Studio 5000 View Designer™ software. This integration lets engineers enter configuration information once and use it for the entire automation design. It also helps you build modern applications with high-speed HMI buttons for jogging applications, scalable vector graphics, and a pre-configured system banner that provides diagnostic information.


• Includes Logix-based alarms to eliminate need for additional configuration
• Features automatic diagnostics that annunciate faults in capable field devices with no user programming
• Achieves <100 ms response for machine jogging applications with a high-speed HMI button
• Provides Logix tag extended property support to help develop richer context
• Features a modern design with a slim, aluminum bezel
• Allows for the ability to create custom, re-usable add-on graphics to more efficiently build your applications
• Shares tags, alarms, and other data using Studio 5000 View Designer™ environment automatically
• Offers emulator to test run a project without downloading to a physical terminal
• Uses a built-in VNC server to support a remote VNC client for monitoring and troubleshooting• Offers visualization solution for larger applications

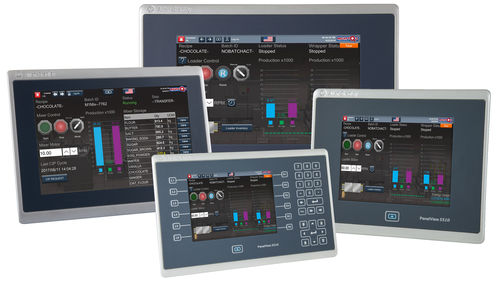

• Offers display sizes from 7...19 in. with wide screen, touch, and keypad options
• Supports 500 screens, connection to four controllers, and up to 4000 tag-based alarms per controller
• Provides 1.46 GHz dual-core processor, 1 Gb RAM, 4 Gb flash

Parameter Name	Parameter Value
Interface	with touch screen
Mounting	panel-mount
Other characteristics	color LCD
Applications	machine
Screen size (mm)	6 - 12
