About

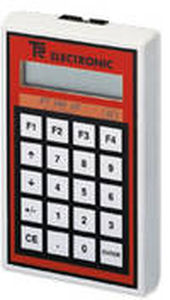

. Art.-No.: 480-00001/V001 (standard)
with ribbon cable
.Languages: German, English, French Programming of Encoder with
.PT-interface
.LCD-display with 2 x 16 digits Foil keyboard
General characteristic data
Operating voltage......................................................11-27 V DC
Programming interface..............................................RS485 (2-wire), 4800 baud
Pin configuration (15-pole SUB-D connector)
Pin 1 .............................................................RS485-
Pin 2 .............................................................RS485+
Pin 14 ...........................................................US, 11-27 V DC
Pin 15 ...........................................................0V, GND
Functions
Read and indicate, modify device data
Transmit adjusted parameters to device
Data comparison device PT-100-N
Indicate actual position of encoder, adjust actual position of encoder
Read device equipment
Language choice
Service functions
Dimensions (BxDxH).................................................91,5 mm x 146 mm x 28,5 mm
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Interface |
with keyboard
|
| Mounting |
wall-mount
|
| Other characteristics |
|
