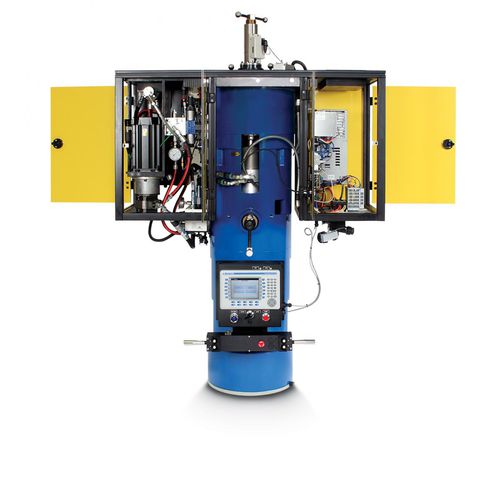

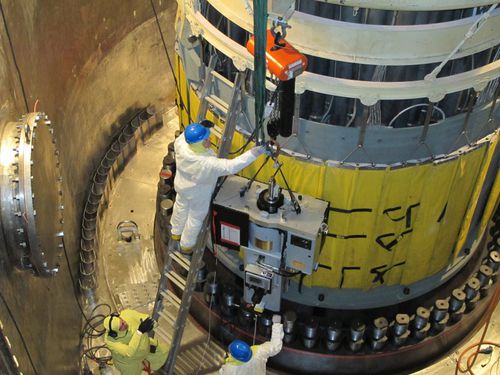

The remarkable SCT - Self Contained Tensioner (formerly known as The Biach SCT) brings greater safety, reduces manpower and shortens downtime to a critical task. Quick connect/disconnect design for fast RPV performance based on decades of field proven use with our QD and QD-H tensioners.

Power needed: 460-480VAC at 10 amps High Speed Industrial Network Communication Protocol Communications via Cat 5 Ethernet Cable bundled with power distribution cable

Pressurisation time: less than 20-30 seconds (based on 1 or 2 stage design)

Accuracy: +/- 15 psi at 10,000 psi maximum pressure

Weight: 3600 to 4600 lbs. (depending on single or two stage cylinders)

Height: comparable to existing QD or QD-H style stud tensioners
