About
This module enables up to 4 Pt100 temperature sensors to be connected.
Due to the four-wire technology the length of the wire has no effect on the accuracy of measurement. The resolution is greater than 0.01 °C.
The measurement supplied by the resistance sensor is linearised and converted to °C.
The signals of the measuring sensor can be calibrated via the software.

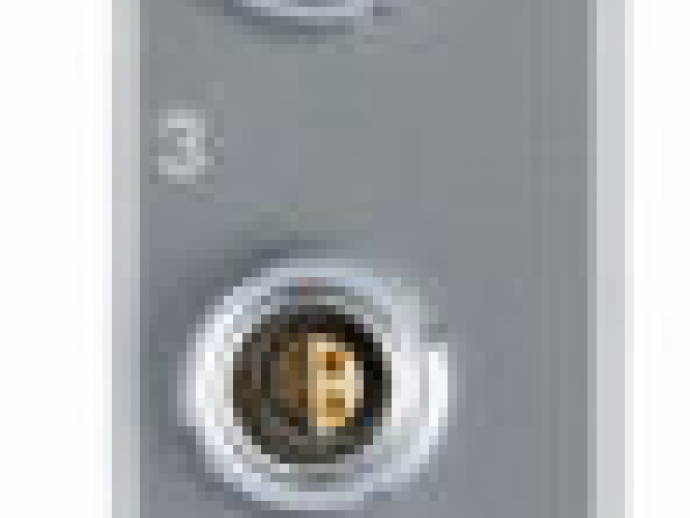

• 4 inputs for Pt100 and resistance sensor (4-pin LEMO socket type S1)
• Highly accurate thanks to the 24-bit analogue/digital converter
• Malfunction and short-circuit detection
• Signal : Pt100 signal with two- and four-wire connection
• Connection type : 4-pin socket, type LEMO S1
• Resolution : 0.01 °C, 20-bit guaranteed resolution
• Measuring range : -200…+600 °C
• Absolute measurement uncertainty (within the maintenance interval) : -50…+300 °C: ±0.2 °C
• For the recording of : temperatures using Pt100 sensors
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| Applications |
for temperature sensors
|
| Number of inputs/outputs |
4 analog inputs
|
| Mounting |
built-in
|
