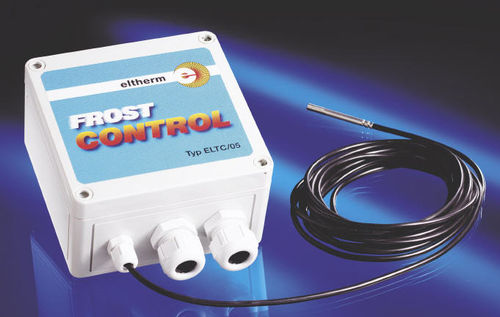

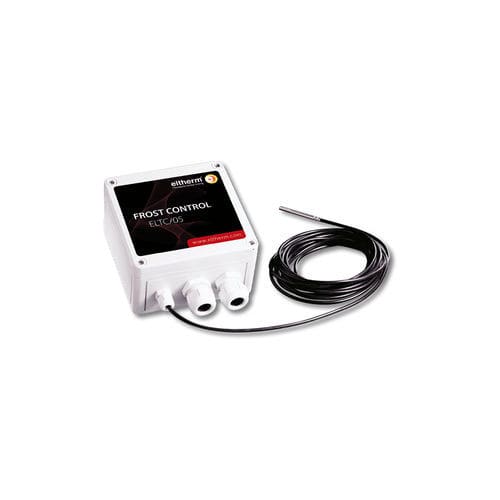

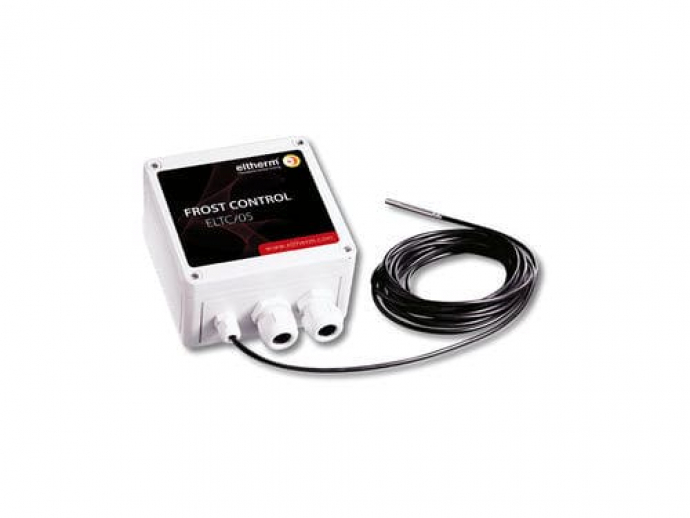

The electronic temperature controller ELTC 05-Frostcontrol is designed for use as an ambient thermostat and surface thermostat with remote sensor. Cable glands and terminals are provided for power input. The unit is supplied in a weather proof plastic enclosure for wall mounting, with a grey cover. The controller should be protected from direct sunlight when used outdoors. In case of use as ambient temperature controller, the sensor cable is shortened to allow fastening of the sensor sleeve within the M12 gland. The sleeve should project by approximately 15 mm.

-Freeze prevention
-Resistance Heating Lines and Self-Regulatining Parallel Trace Heaters

-Weather proof
-Fixed switching set point

Parameter Name	Parameter Value
Display	without display
Type	thermoelectric
Protection level	weatherproof
Use	heating ambient temperature
Other characteristics	with control/safety thermostat remote
Maximum temperature (°C)	0 - 60
