Temperature Controllers / Immersion Heaters with Built-in Temperature Controllers

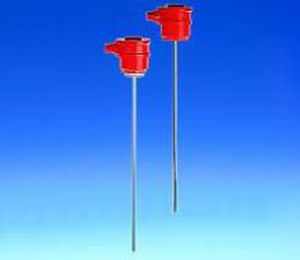

Rod Type Thermostat Rotkopf

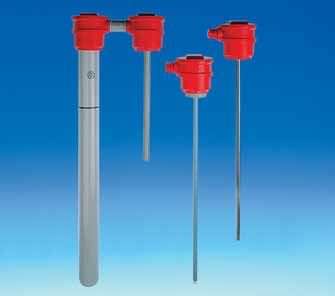

Immersion Heater with Built-in Temperature Controller
Submergible Tubing Material

The Rotkopf temperature controller is used for automatically maintaining a defined set temperature. A change in temperature causes the volume to change in a liquid filled measurement system which moves the switching membrane. This activates a switching contact. To avoid measurement errors, please ensure that the active measurement length of 100 mm is already submerged in the liquid. The thermostat is contained in the housing of the attachment which is made of PP and is protected to IP 64 DIN 40050. By opening the cover of the housing with the universal wrench Part. No. 54780, you can access the temperature setting head and the attachment position. The maximum switching power is 2300 W/250 V (AC). The temperature controller is supplied with a connection length of 1.6 m without connector. For tanks having a performance of maximum 2 Kw for maintaining the operating temperature, we can supply immersion heaters with inbuilt temperature controllers. This built-in temperature controller is well matched to the material of the submergible tubing with its chemical resistance and automatically controls the temperature according to the defined set value. This enables a direct connection to an outlet without requiring any other switching elements. These devices are equipped with a 1.6 m long PVC line and a coated shock-proof plug as standard. Longer cables an be supplied upon demand.

Parameter Name	Parameter Value
Display	without display
Type	thermoelectric
